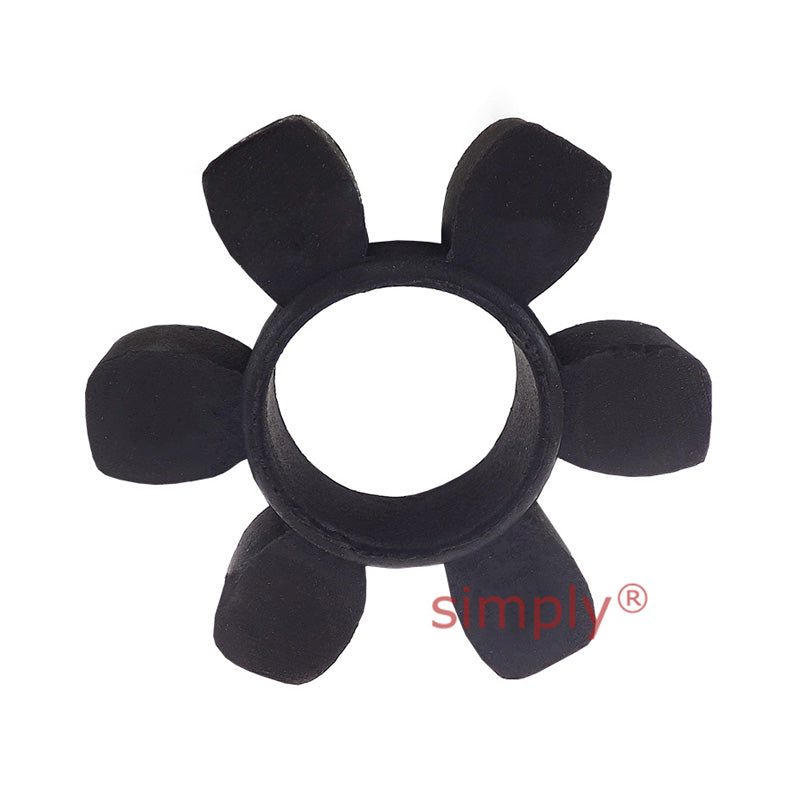

• Major Branded HRC130F/HRC130H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 42mm / 1-5/8 inch with Natural Rubber Insert
1 1

SKU: HRC130F+HRC130H+HRC130I-MB

Major Branded HRC130F/HRC130H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 42mm / 1-5/8 inch with Natural Rubber Insert

Major Branded HRC130F/HRC130H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 42mm / 1-5/8 inch with Natural Rubber Insert
$47.93 ex VAT
$47.93 ex VAT
Sale Sold out

Equivalent to: HRC130F-1610 HRC130H-1610 HRC130I DRC130F+DRC130H+DRC130I

In stock

Price Break
10+ $32.10
19+ $30.30
29+ $29.94
39+ $29.58
49+ $29.22
74+ $28.86
99+ $27.05
199+ $26.69
249+ $26.33
499+ $25.97
999+ $25.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
42mm or 1-5/8 inch
Technical
Nominal Torque 315 Nm
Overall Diameter A 130mm
Hub Diameter B 105mm
Assembled Length F 53.5mm
Insert Bore Dia E 50mm
Insert Width G 36.5mm
Parallel Misalignment 0.4mm
Assembly Weight 4.732kg
L width 89.5mm<sup>1</sup>
F Type - Bush Size 1610 <a href="advanced_search_result.php?keywords=taper+lock+bush+1610">[Click Here]</a>
F Type - Max Bore 42mm
F Type - Max Bore 1-5/8 inch
F Type - Shoulder Width D 18mm
F Type - Hub Width C 26.5mm
H Type - Bush Size 1610 <a href="advanced_search_result.php?keywords=taper+lock+bush+1610">[Click Here]</a>
H Type - Max Bore 42mm
H Type - Max Bore 1-5/8 inch
H Type - Shoulder Width D 18mm
H Type - Hub Width C 26.5mm
Max Power at 100 rpm 3.3 kW
Max Power at 200 rpm 6.6 kW
Max Power at 400 rpm 13.2 kW
Max Power at 600 rpm 19.8 kW
Max Power at 720 rpm 23.8 kW
Max Power at 800 rpm 26.4 kW
Max Power at 960 rpm 31.7 kW
Max Power at 1200 rpm 39.6 kW
Max Power at 1440 rpm 47.5 kW
Max Power at 1600 rpm 52.8 kW
Max Power at 1800 rpm 59.4 kW
Max Power at 2000 rpm 66 kW
Max Power at 2200 rpm 72.6 kW
Max Power at 2400 rpm 79.2 kW
Max Power at 2600 rpm 85.8 kW
Max Power at 2880 rpm 95 kW
Max Power at 3000 rpm 99 kW
Max Power at 3600 rpm 118 kW
Nominal Torque (Nm) 315 Nm
Max Torque 720 Nm
