SKU: HRC150F-MB

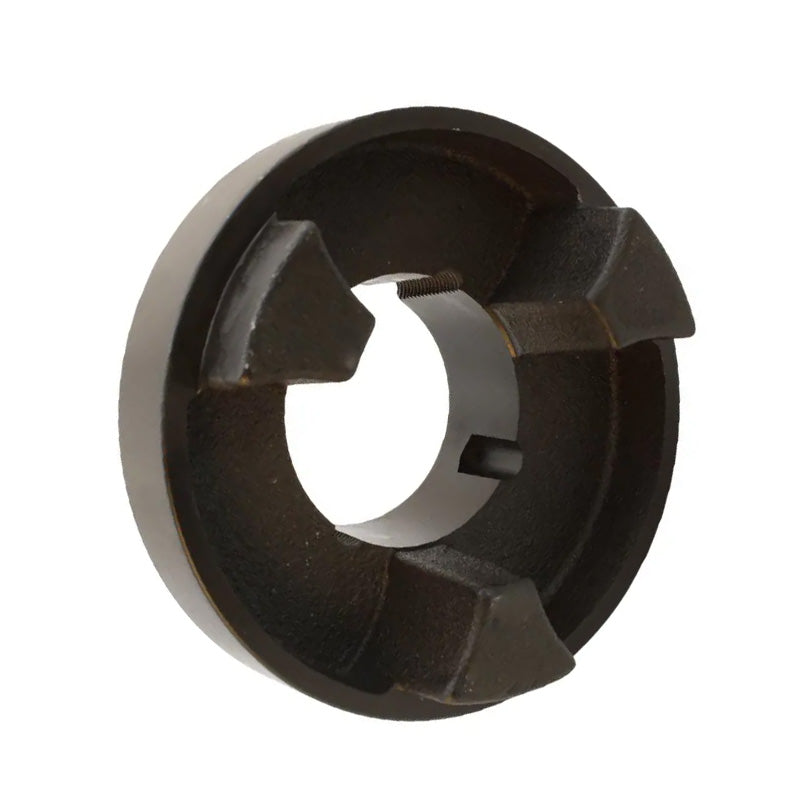

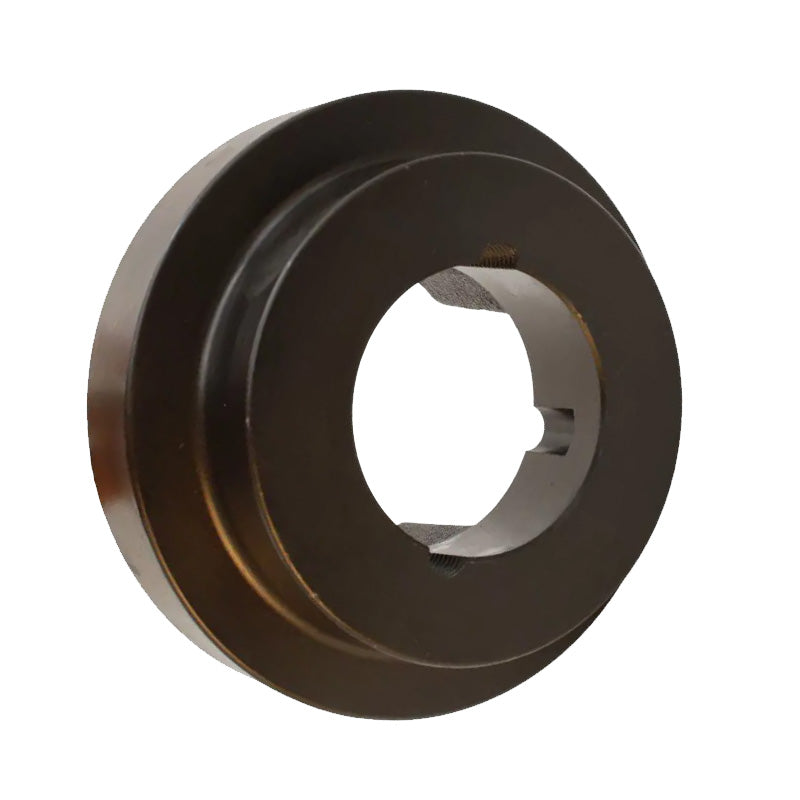

Major Branded HRC150F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 50mm / 2 inch

Major Branded HRC150F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 50mm / 2 inch
$29.92 ex VAT
$29.92 ex VAT
Sale Sold out

Equivalent to: HRC150F-2012 DRC150F

In stock

Price Break
10+ $20.04
19+ $18.92
29+ $18.69
39+ $18.47
49+ $18.24
74+ $18.02
99+ $16.89
199+ $16.67
249+ $16.44
499+ $16.22
999+ $15.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
50mm or 2 inch
Technical
Nominal Torque 600 Nm

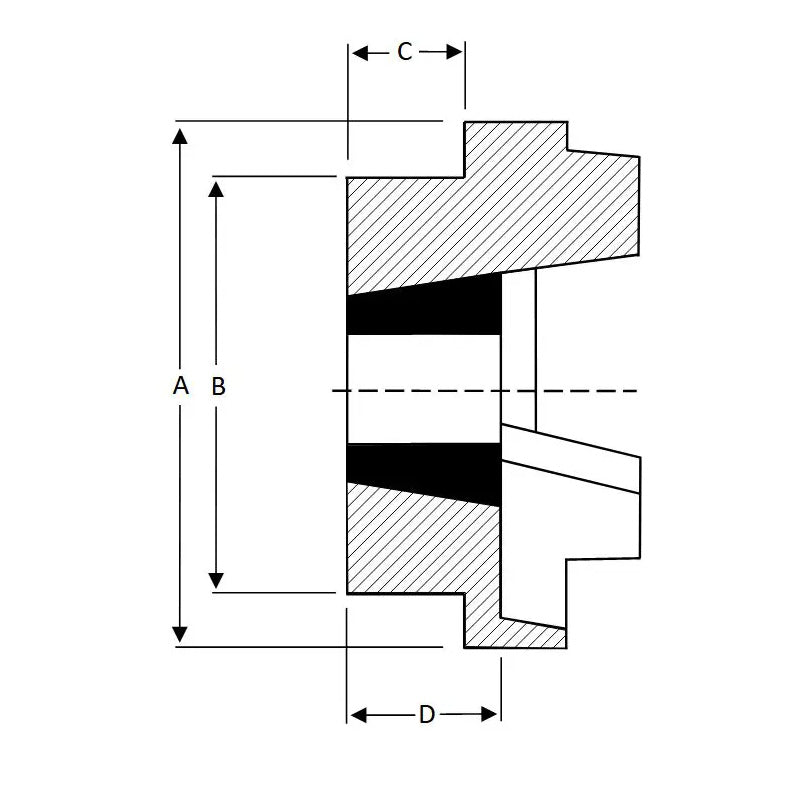

Overall Diameter A 150mm
Hub Diameter B 115mm
Assembled Length F 60.5mm
Insert Bore Dia E 62mm
Insert Width G 40.5mm
Parallel Misalignment 0.4mm
Weight 3.3kg
L width 107.5mm<sup>1</sup>
Bush Size 2012 <a href="advanced_search_result.php?keywords=taper+lock+bush+2012">[Click Here]</a>
Max Bore 50mm
Max Bore 2 inch
Shoulder Width D 23.5mm
Hub Width C 33.5mm
Max Power at 100 rpm 6.28 kW
Max Power at 200 rpm 12.6 kW
Max Power at 400 rpm 25.1 kW
Max Power at 600 rpm 37.7 kW
Max Power at 720 rpm 45.2 kW
Max Power at 800 rpm 50.3 kW
Max Power at 960 rpm 60.3 kW
Max Power at 1200 rpm 75.4 kW
Max Power at 1440 rpm 90.5 kW
Max Power at 1600 rpm 101 kW
Max Power at 1800 rpm 113 kW
Max Power at 2000 rpm 126 kW
Max Power at 2200 rpm 138 kW
Max Power at 2400 rpm 151 kW
Max Power at 2600 rpm 163 kW
Max Power at 2880 rpm 181 kW
Max Power at 3000 rpm 188 kW
Max Power at 3600 rpm 226 kW
Nominal Torque (Nm) 600 Nm
Max Torque 1500 Nm
