SKU: HRC180B-MB

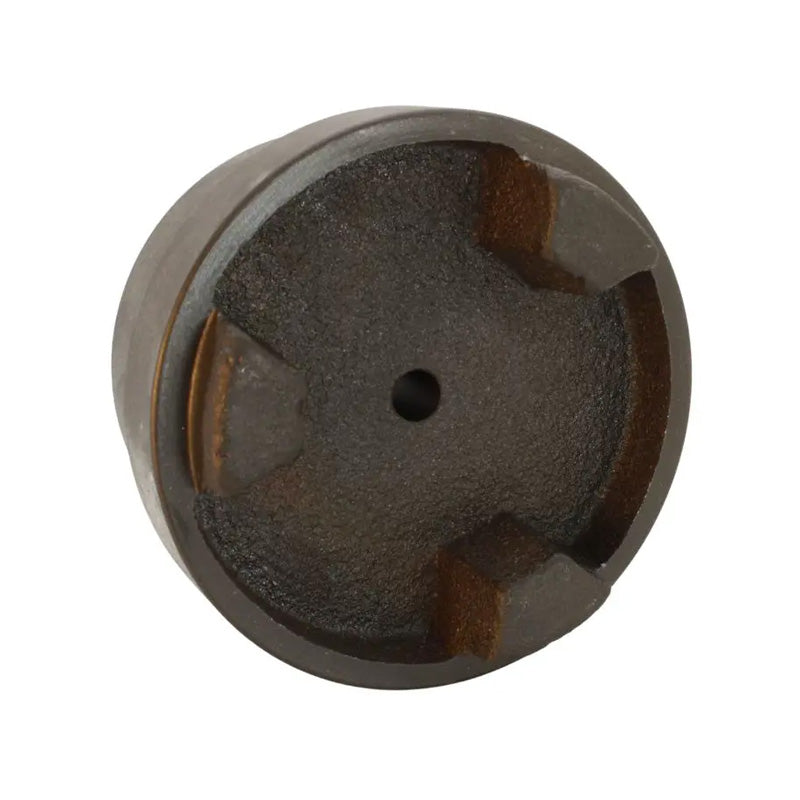

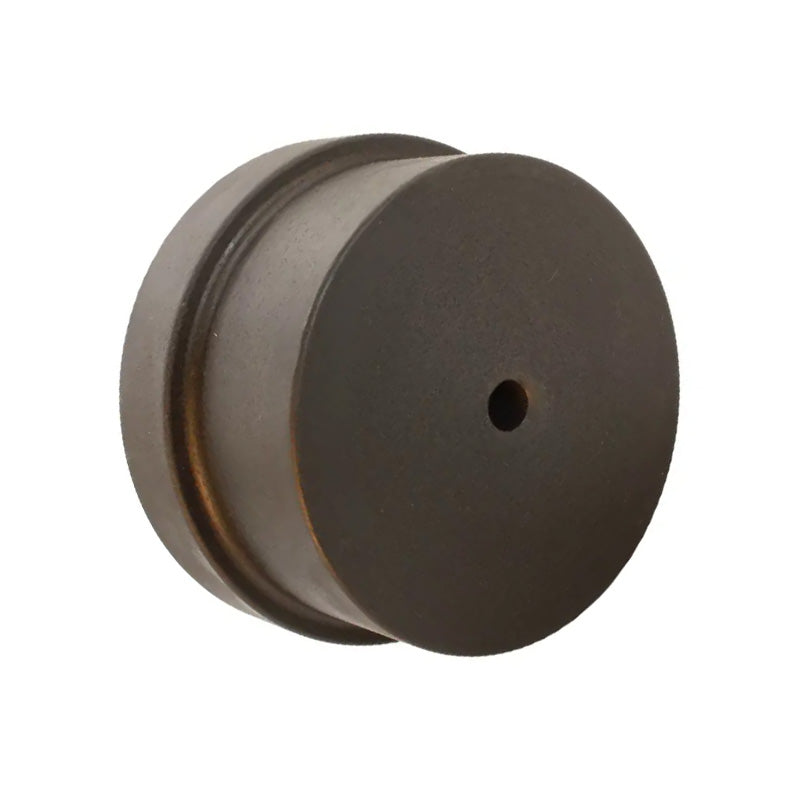

Major Branded HRC180B-MB HRC Coupling Single Flange Pilot Bored Max Bore 80mm

Major Branded HRC180B-MB HRC Coupling Single Flange Pilot Bored Max Bore 80mm
$55.62 ex VAT
$55.62 ex VAT
Sale Sold out

Equivalent to: HRC180B DRC180B

In stock

Price Break
10+ $37.26
19+ $35.16
29+ $34.74
39+ $34.33
49+ $33.91
74+ $33.49
99+ $31.40
199+ $30.98
249+ $30.56
499+ $30.14
999+ $29.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality

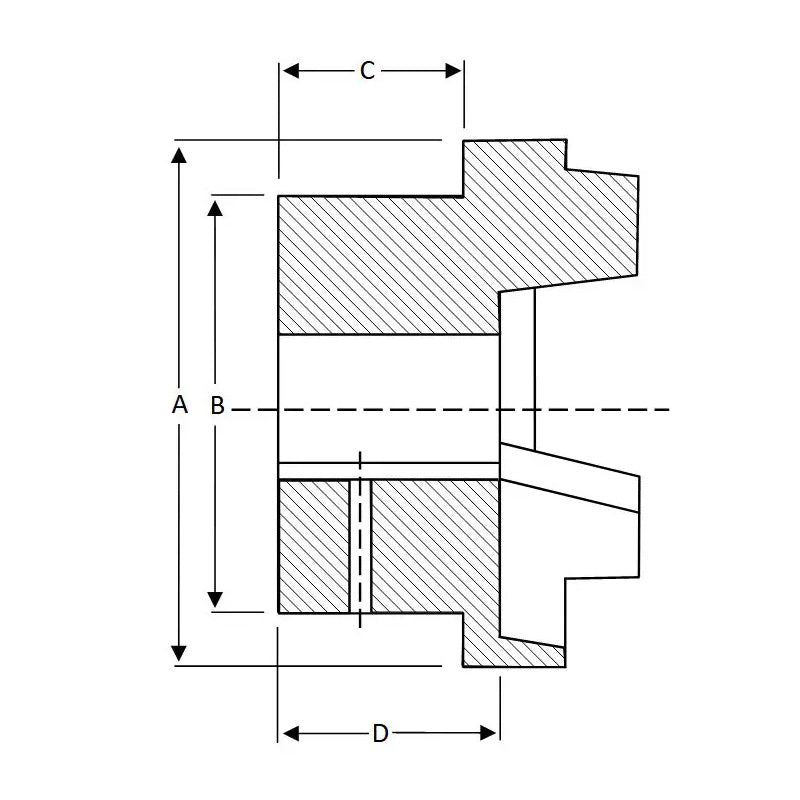

Technical
Nominal Torque 950 Nm
Overall Diameter A 180mm
Hub Diameter B 125mm
Assembled Length F 73.5mm
Insert Bore Dia E 77mm
Insert Width G 49.5mm
Parallel Misalignment 0.4mm
Weight 9kg
L width 189.5mm<sup>3</sup>
Max Bore 80mm
Pilot Bore (Approx) 25mm
Keyway Screw Size M10mm
Shoulder Width D 58mm
Hub Width C 70.5mm
Max Power at 100 rpm 9.95 kW
Max Power at 200 rpm 19.9 kW
Max Power at 400 rpm 39.8 kW
Max Power at 600 rpm 59.7 kW
Max Power at 720 rpm 71.6 kW
Max Power at 800 rpm 79.6 kW
Max Power at 960 rpm 95.5 kW
Max Power at 1200 rpm 119 kW
Max Power at 1440 rpm 143 kW
Max Power at 1600 rpm 159 kW
Max Power at 1800 rpm 179 kW
Max Power at 2000 rpm 199 kW
Max Power at 2200 rpm 219 kW
Max Power at 2400 rpm 239 kW
Max Power at 2600 rpm 259 kW
Max Power at 2880 rpm 286 kW
Max Power at 3000 rpm 298 kW
Nominal Torque (Nm) 950 Nm
Max Torque 2350 Nm
