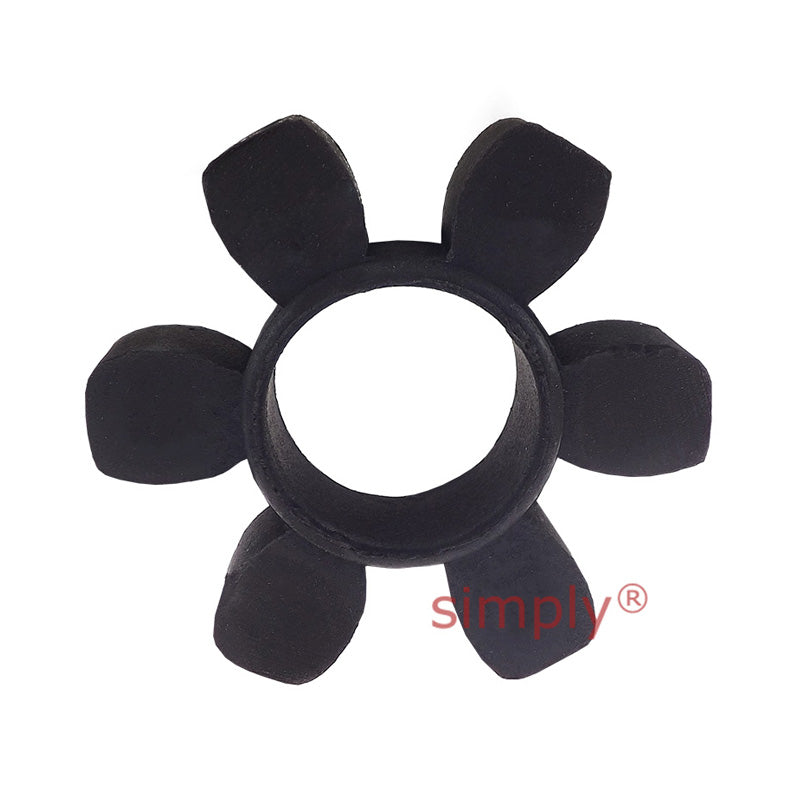

• Major Branded HRC180F/HRC180B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 60mm / 2-1/2 inch with Natural Rubber Insert
1 1

SKU: HRC180F+HRC180B+HRC180I-MB

Major Branded HRC180F/HRC180B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 60mm / 2-1/2 inch with Natural Rubber Insert

Major Branded HRC180F/HRC180B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 60mm / 2-1/2 inch with Natural Rubber Insert
$113.79 ex VAT
$113.79 ex VAT
Sale Sold out

Equivalent to: HRC180F-2517 HRC180B HRC180I DRC180F+DRC180B+DRC180I

In stock

Price Break
10+ $76.22
19+ $71.94
29+ $71.08
39+ $70.23
49+ $69.37
74+ $68.51
99+ $64.23
199+ $63.38
249+ $62.52
499+ $61.66
999+ $59.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
60mm or 2-1/2 inch
Technical
Nominal Torque 950 Nm
Overall Diameter A 180mm
Hub Diameter B 125mm
Assembled Length F 73.5mm
Insert Bore Dia E 77mm
Insert Width G 49.5mm
Parallel Misalignment 0.4mm
Assembly Weight 14.796kg
L width 165.5mm<sup>2</sup>
F Type - Bush Size 2517 <a href="advanced_search_result.php?keywords=taper+lock+bush+2517">[Click Here]</a>
F Type - Max Bore 60mm
F Type - Max Bore 2-1/2 inch
F Type - Shoulder Width D 34.5mm
F Type - Hub Width C 46.5mm
B Type - Max Bore 80mm
B Type - Pilot Bore 25mm
B Type - Keyway Screw Size M10mm
B Type - Shoulder Width D 58mm
B Type - Hub Width C 70.5mm
Max Power at 100 rpm 9.95 kW
Max Power at 200 rpm 19.9 kW
Max Power at 400 rpm 39.8 kW
Max Power at 600 rpm 59.7 kW
Max Power at 720 rpm 71.6 kW
Max Power at 800 rpm 79.6 kW
Max Power at 960 rpm 95.5 kW
Max Power at 1200 rpm 119 kW
Max Power at 1440 rpm 143 kW
Max Power at 1600 rpm 159 kW
Max Power at 1800 rpm 179 kW
Max Power at 2000 rpm 199 kW
Max Power at 2200 rpm 219 kW
Max Power at 2400 rpm 239 kW
Max Power at 2600 rpm 259 kW
Max Power at 2880 rpm 286 kW
Max Power at 3000 rpm 298 kW
Nominal Torque (Nm) 950 Nm
Max Torque 2350 Nm
