SKU: HRC230B+HRC230B+HRC230I-MB

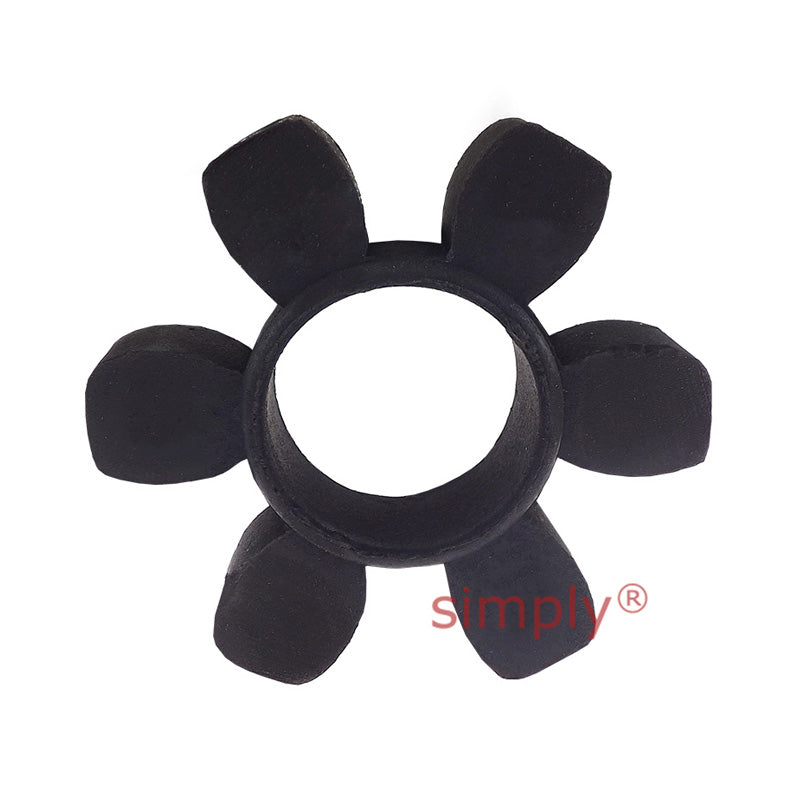

Major Branded HRC230B Coupling Assembly Pilot Bored Nominal 25mm Max Bore 100mm with Natural Rubber Insert
Equivalent to: HRC230B HRC230B HRC230I DRC230B+DRC230B+DRC230I
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Branded HRC Coupling Assembly Pilot Bored with Natural Rubber Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching insert. The coupling is the BB type which has pilot bores and will require machining to your application requirements.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
- Brand / Quality:
- Major Brand - High Quality
Technical
| Nominal Torque | 2000 Nm |
|---|---|
| Overall Diameter A | 225mm |
| Hub Diameter B | 155mm |
| Assembled Length F | 85.5mm |
| Insert Bore Dia E | 99mm |
| Insert Width G | 59.5mm |
| Parallel Misalignment | 0.5mm |
| Assembly Weight | 38.865kg |
| L width | 239.5mm<sup>3</sup> |
| B Type - Max Bore | 100mm |
| B Type - Pilot Bore | 25mm |
| B Type - Keyway Screw Size | M12mm |
| B Type - Shoulder Width D | 77mm |
| B Type - Hub Width C | 90.5mm |
| Max Power at 100 rpm | 20.9 kW |
| Max Power at 200 rpm | 41.9 kW |
| Max Power at 400 rpm | 83.8 kW |
| Max Power at 600 rpm | 126 kW |
| Max Power at 720 rpm | 151 kW |
| Max Power at 800 rpm | 168 kW |
| Max Power at 960 rpm | 201 kW |
| Max Power at 1200 rpm | 251 kW |
| Max Power at 1440 rpm | 302 kW |
| Max Power at 1600 rpm | 335 kW |
| Max Power at 1800 rpm | 377 kW |
| Max Power at 2000 rpm | 419 kW |
| Max Power at 2200 rpm | 461 kW |
| Max Power at 2400 rpm | 503 kW |
| Max Power at 2600 rpm | 545 kW |
| Nominal Torque (Nm) | 2000 Nm |
| Max Torque | 5000 Nm |
