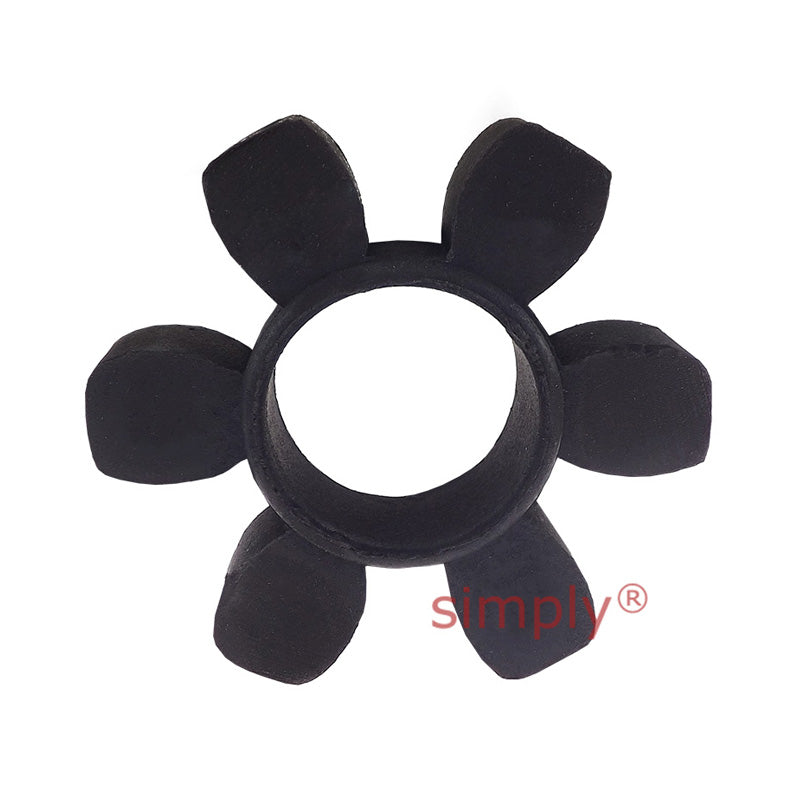

• Major Branded HRC230F/HRC230B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 75mm / 3 inch with Natural Rubber Insert
1 1

SKU: HRC230F+HRC230B+HRC230I-MB

Major Branded HRC230F/HRC230B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 75mm / 3 inch with Natural Rubber Insert

Major Branded HRC230F/HRC230B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 75mm / 3 inch with Natural Rubber Insert
$175.97 ex VAT
$175.97 ex VAT
Sale Sold out

Equivalent to: HRC230F-3020 HRC230B HRC230I DRC230F+DRC230B+DRC230I

In stock

Price Break
10+ $117.87
19+ $111.25
29+ $109.92
39+ $108.60
49+ $107.27
74+ $105.95
99+ $99.33
199+ $98.00
249+ $96.68
499+ $95.35
999+ $92.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
75mm or 3 inch
Technical
Nominal Torque 2000 Nm
Overall Diameter A 225mm
Hub Diameter B 155mm
Assembled Length F 85.5mm
Insert Bore Dia E 99mm
Insert Width G 59.5mm
Parallel Misalignment 0.5mm
Assembly Weight 29.215kg
L width 202.5mm<sup>2</sup>
F Type - Bush Size 3020 <a href="advanced_search_result.php?keywords=taper+lock+bush+3020">[Click Here]</a>
F Type - Max Bore 75mm
F Type - Max Bore 3 inch
F Type - Shoulder Width D 39.5mm
F Type - Hub Width C 52.5mm
B Type - Max Bore 100mm
B Type - Pilot Bore 25mm
B Type - Keyway Screw Size M12mm
B Type - Shoulder Width D 77mm
B Type - Hub Width C 90.5mm
Max Power at 100 rpm 20.9 kW
Max Power at 200 rpm 41.9 kW
Max Power at 400 rpm 83.8 kW
Max Power at 600 rpm 126 kW
Max Power at 720 rpm 151 kW
Max Power at 800 rpm 168 kW
Max Power at 960 rpm 201 kW
Max Power at 1200 rpm 251 kW
Max Power at 1440 rpm 302 kW
Max Power at 1600 rpm 335 kW
Max Power at 1800 rpm 377 kW
Max Power at 2000 rpm 419 kW
Max Power at 2200 rpm 461 kW
Max Power at 2400 rpm 503 kW
Max Power at 2600 rpm 545 kW
Nominal Torque (Nm) 2000 Nm
Max Torque 5000 Nm
