SKU: HRC280B-MB

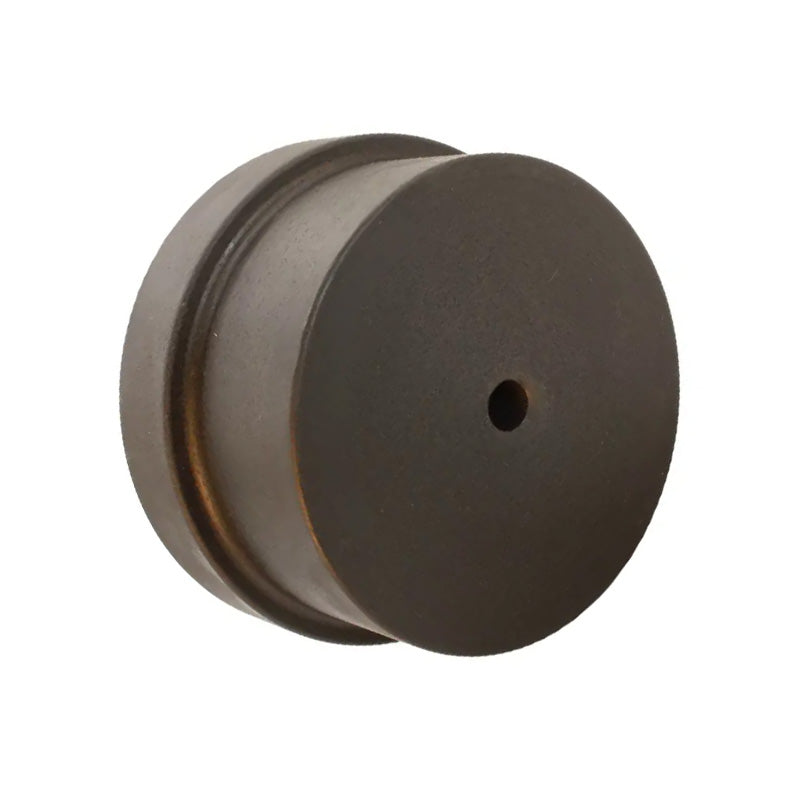

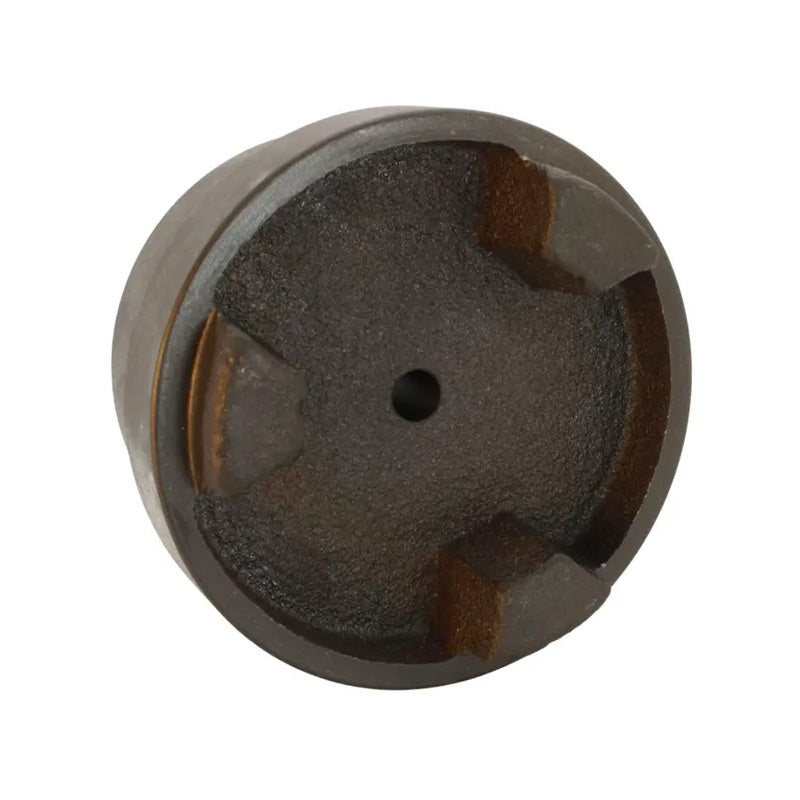

Major Branded HRC280B-MB HRC Coupling Single Flange Pilot Bored Max Bore 115mm

Major Branded HRC280B-MB HRC Coupling Single Flange Pilot Bored Max Bore 115mm
$174.83 ex VAT
$174.83 ex VAT
Sale Sold out

Equivalent to: HRC280B DRC280B

In stock

Price Break
10+ $117.11
19+ $110.53
29+ $109.21
39+ $107.90
49+ $106.58
74+ $105.26
99+ $98.69
199+ $97.37
249+ $96.05
499+ $94.74
999+ $92.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Technical

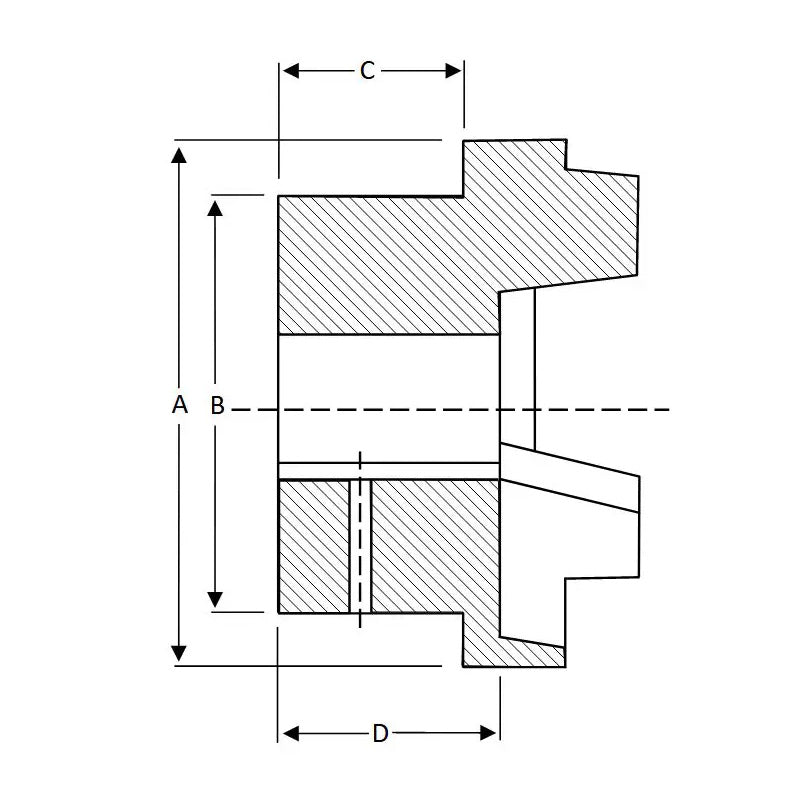

Nominal Torque 3150 Nm
Overall Diameter A 275mm
Hub Diameter B 206mm
Assembled Length F 105.5mm
Insert Bore Dia E 119mm
Insert Width G 74.5mm
Parallel Misalignment 0.5mm
Weight 33.5kg
L width 285.5mm<sup>3</sup>
Max Bore 115mm
Pilot Bore (Approx) 30mm
Keyway Screw Size M16mm
Shoulder Width D 90mm
Hub Width C 105.5mm
Max Power at 100 rpm 33 kW
Max Power at 200 rpm 65 kW
Max Power at 400 rpm 132 kW
Max Power at 600 rpm 198 kW
Max Power at 720 rpm 238 kW
Max Power at 800 rpm 264 kW
Max Power at 960 rpm 317 kW
Max Power at 1200 rpm 396 kW
Max Power at 1440 rpm 475 kW
Max Power at 1600 rpm 528 kW
Max Power at 1800 rpm 594 kW
Max Power at 2000 rpm 660 kW
Max Power at 2200 rpm 726 kW
Nominal Torque (Nm) 3150 Nm
Max Torque 7200 Nm
