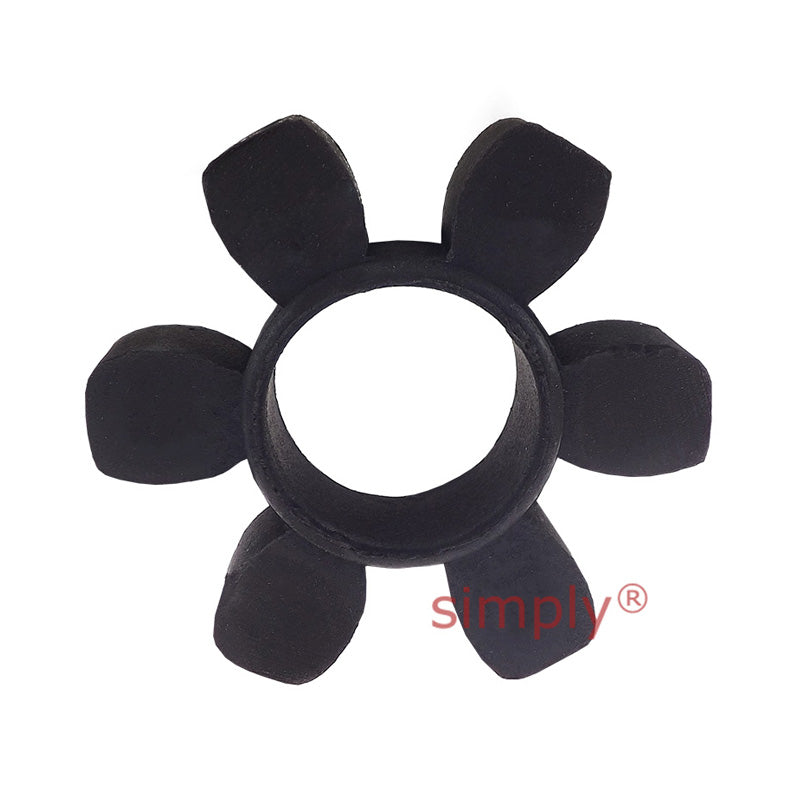

• Major Branded HRC70F/HRC70B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 25mm / 1 inch with Natural Rubber Insert
1 1

SKU: HRC70F+HRC70B+HRC70I-MB

Major Branded HRC70F/HRC70B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 25mm / 1 inch with Natural Rubber Insert

Major Branded HRC70F/HRC70B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 25mm / 1 inch with Natural Rubber Insert
$25.75 ex VAT
$25.75 ex VAT
Sale Sold out

Equivalent to: HRC70F-1008 HRC70B HRC70I DRC70F+DRC70B+DRC70I

In stock

Price Break
10+ $17.24
19+ $16.28
29+ $16.08
39+ $15.89
49+ $15.69
74+ $15.50
99+ $14.53
199+ $14.34
249+ $14.14
499+ $13.95
999+ $13.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
25mm or 1 inch
Technical
Nominal Torque 31 Nm
Overall Diameter A 69mm
Hub Diameter B 60mm
Assembled Length F 25.5mm
Insert Bore Dia E 31mm
Insert Width G 18.5mm
Parallel Misalignment 0.3mm
Assembly Weight 1.093kg
L width 65.5mm<sup>2</sup>
F Type - Bush Size 1008 <a href="advanced_search_result.php?keywords=taper+lock+bush+1008">[Click Here]</a>
F Type - Max Bore 25mm
F Type - Max Bore 1 inch
F Type - Shoulder Width D 20mm
F Type - Hub Width C 23.5mm
B Type - Max Bore 32mm
B Type - Pilot Bore 8mm
B Type - Keyway Screw Size M6mm
B Type - Shoulder Width D 20mm
B Type - Hub Width C 23.5mm
Max Power at 100 rpm 0.33 kW
Max Power at 200 rpm 0.66 kW
Max Power at 400 rpm 1.32 kW
Max Power at 600 rpm 1.98 kW
Max Power at 720 rpm 2.37 kW
Max Power at 800 rpm 2.64 kW
Max Power at 960 rpm 3.17 kW
Max Power at 1200 rpm 3.96 kW
Max Power at 1440 rpm 4.75 kW
Max Power at 1600 rpm 5.28 kW
Max Power at 1800 rpm 5.94 kW
Max Power at 2000 rpm 6.6 kW
Max Power at 2200 rpm 7.26 kW
Max Power at 2400 rpm 7.92 kW
Max Power at 2600 rpm 8.58 kW
Max Power at 2880 rpm 9.5 kW
Max Power at 3000 rpm 9.9 kW
Max Power at 3600 rpm 11.9 kW
Nominal Torque (Nm) 31.5 Nm
Max Torque 72 Nm
