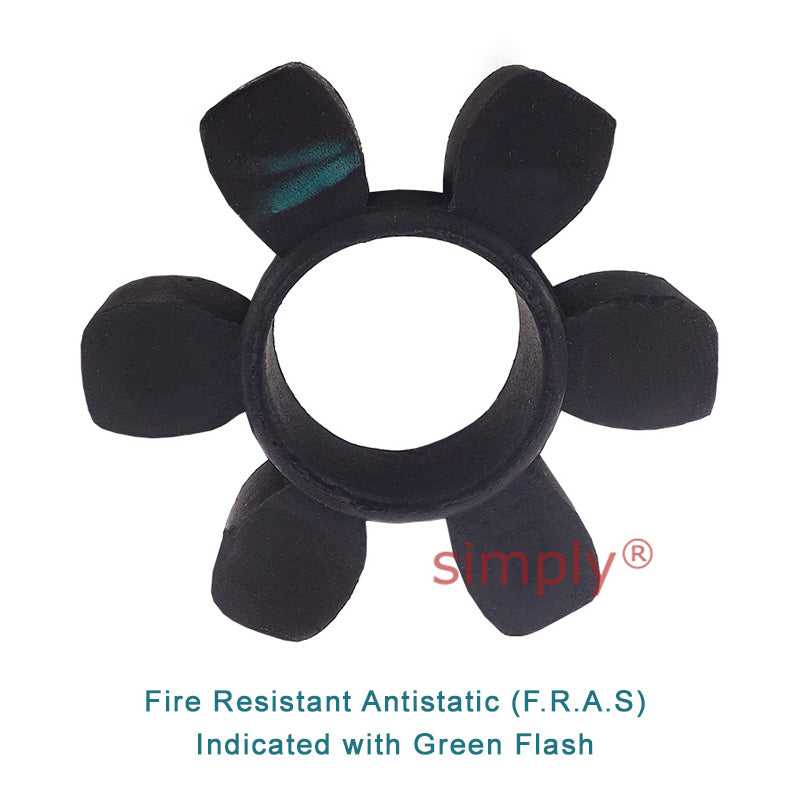

• Major Branded HRC90F/HRC90H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 28mm / 1-1/8 inch with Fire Resistant Antistatic (F.R.A.S) Insert
1 1

SKU: HRC90F+HRC90H+HRC90I-FRAS-MB

Major Branded HRC90F/HRC90H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 28mm / 1-1/8 inch with Fire Resistant Antistatic (F.R.A.S) Insert

Major Branded HRC90F/HRC90H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 28mm / 1-1/8 inch with Fire Resistant Antistatic (F.R.A.S) Insert
$32.90 ex VAT
$32.90 ex VAT
Sale Sold out

Equivalent to: HRC90F-1108 HRC90H-1108 HRC90I-FRAS DRC90F+DRC90H+DRC90I

In stock

Price Break
10+ $22.03
19+ $20.79
29+ $20.55
39+ $20.30
49+ $20.05
74+ $19.80
99+ $18.57
199+ $18.32
249+ $18.07
499+ $17.82
999+ $17.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
28mm or 1-1/8 inch
Technical
Nominal Torque 80 Nm
Overall Diameter A 85mm
Hub Diameter B 70mm
Assembled Length F 30.5mm
Insert Bore Dia E 32mm
Insert Width G 22.5mm
Parallel Misalignment 0.3mm
Assembly Weight 1.503kg
L width 69.5mm<sup>1</sup>
F Type - Bush Size 1108 <a href="advanced_search_result.php?keywords=taper+lock+bush+1108">[Click Here]</a>
F Type - Max Bore 28mm
F Type - Max Bore 1-1/8 inch
F Type - Shoulder Width D 19.5mm
F Type - Hub Width C 23.5mm
H Type - Bush Size 1108 <a href="advanced_search_result.php?keywords=taper+lock+bush+1108">[Click Here]</a>
H Type - Max Bore 28mm
H Type - Max Bore 1-1/8 inch
H Type - Shoulder Width D 19.5mm
H Type - Hub Width C 23.5mm
Max Power at 100 rpm 0.84 kW
Max Power at 200 rpm 1.68 kW
Max Power at 400 rpm 3.35 kW
Max Power at 600 rpm 5.03 kW
Max Power at 720 rpm 6.03 kW
Max Power at 800 rpm 6.7 kW
Max Power at 960 rpm 8.04 kW
Max Power at 1200 rpm 10.1 kW
Max Power at 1440 rpm 12.1 kW
Max Power at 1600 rpm 13.4 kW
Max Power at 1800 rpm 15.1 kW
Max Power at 2000 rpm 16.8 kW
Max Power at 2200 rpm 18.4 kW
Max Power at 2400 rpm 20.1 kW
Max Power at 2600 rpm 21.8 kW
Max Power at 2880 rpm 24.1 kW
Max Power at 3000 rpm 25.1 kW
Max Power at 3600 rpm 30.1 kW
Nominal Torque (Nm) 80 Nm
Max Torque 180 Nm
