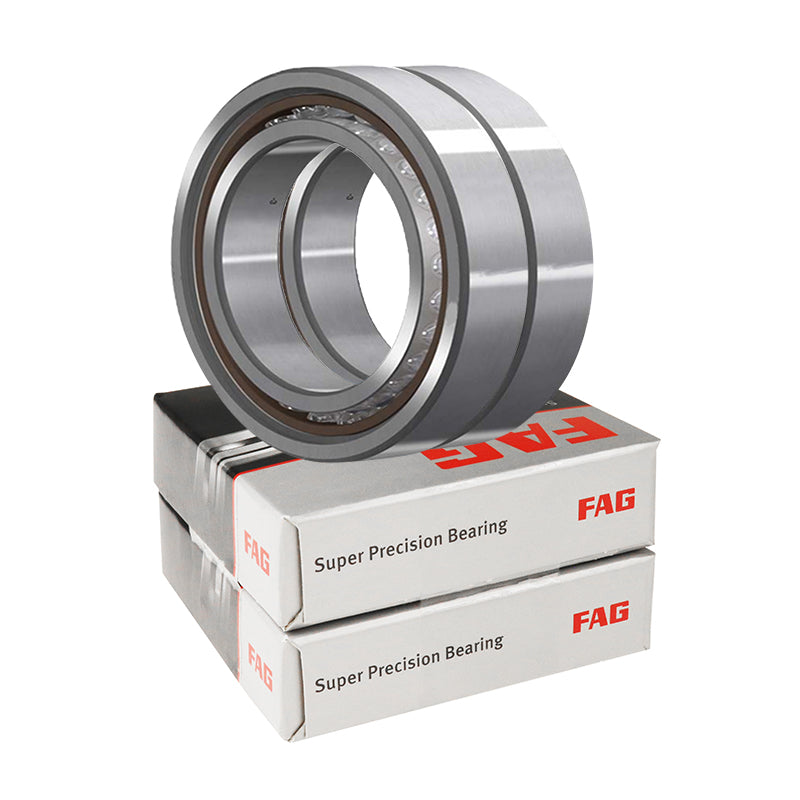

FAG HS71908CTP4SDUL Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)

Name: FAG HS71908CTP4SDUL Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)
Brand: FAG
SKU: HS71908-C-T-P4S-DUL-FAG
Price: 479.47 USD
Availability: InStock

$479.47 ex VAT

Sale Sold out

In stock

Price Break

3+ $321.17

5+ $303.12

10+ $299.51

25+ $295.91

49+ $292.30

74+ $288.69

99+ $270.65

199+ $267.04

249+ $263.43

499+ $259.82

999+ $252.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 62mm
Width:: 12mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 15 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	40mm
D	62mm
B	12mm
r<sub>s min</sub>	0.6mm
---	Abutment dimensions
da<sub> min</sub>	45 mm
Da<sub> min</sub>	58.5mm
ra<sub> max</sub>	0.6mm
rb<sub> max</sub>	0.6mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	49.3 kN
C <sub>dynamic</sub>	7.2 kN
C<sub>o static</sub>	6.95 kN
Speed in grease	28000 rpm
Speed in oil	43000 rpm
Preloading force F<sub>v</sub> L	25 N
Preloading force F<sub>v</sub> M	74 N
Preloading force F<sub>v</sub> H	147 N
Unloading force K<sub>aE</sub> L	75 N
Unloading force K<sub>aE</sub> M	233 N
Unloading force K<sub>aE</sub> H	484 N
Axial rigidity C<sub>a</sub> L	27 N/μm
Axial rigidity C<sub>a</sub> M	42.3 N/μm
Axial rigidity C<sub>a</sub> H	57.7 N/μm
Weight	0.13kg
