SKU: HS71908-E-T-P4S-DUL-FAG

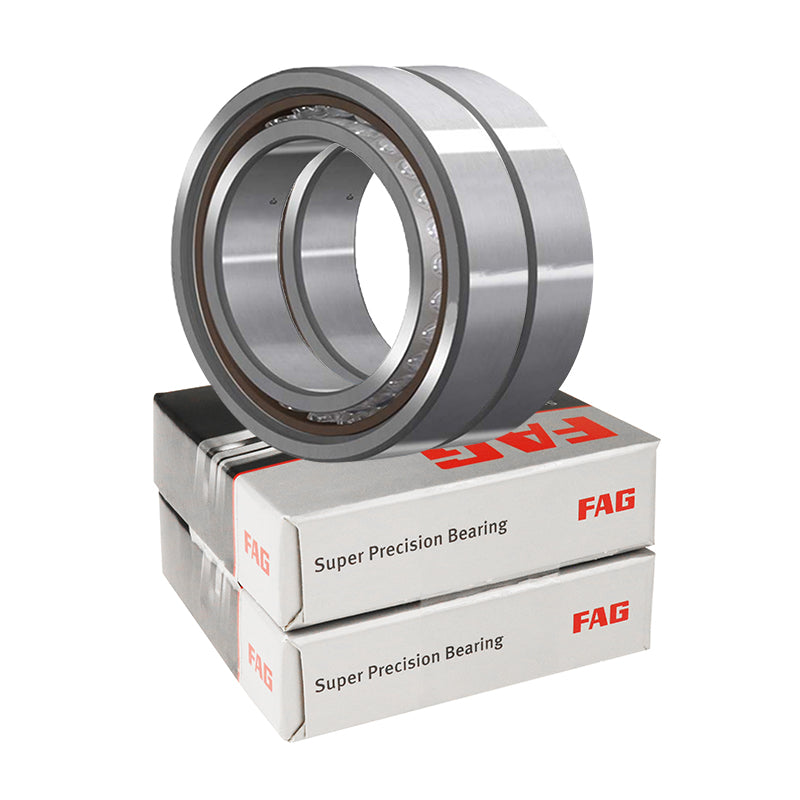

FAG HS71908ETP4SDUL Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)

Name: FAG HS71908ETP4SDUL Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)
Brand: FAG
SKU: HS71908-E-T-P4S-DUL-FAG
Price: 418.26 USD
Availability: InStock

$418.26 ex VAT

Sale Sold out

In stock

Price Break

3+ $280.16

5+ $264.42

10+ $261.28

25+ $258.13

49+ $254.98

74+ $251.83

99+ $236.09

199+ $232.94

249+ $229.80

499+ $226.65

999+ $220.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 62mm
Width:: 12mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 40 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	40mm
D	62mm
B	12mm
r<sub>s min</sub>	0.6mm
---	Abutment dimensions
da<sub> min</sub>	45 mm
Da<sub> min</sub>	58.5mm
ra<sub> max</sub>	0.6mm
rb<sub> max</sub>	0.6mm
---	Speeds, weights and loads
E<sub>tk nominal</sub>	49.3 kN
C <sub>dynamic</sub>	6.8 kN
C<sub>o static</sub>	6.4 kN
Speed in grease	24000 rpm
Speed in oil	38000 rpm
Preloading force F<sub>v</sub> L	40 N
Preloading force F<sub>v</sub> M	120 N
Preloading force F<sub>v</sub> H	239 N
Unloading force K<sub>aE</sub> L	115 N
Unloading force K<sub>aE</sub> M	352 N
Unloading force K<sub>aE</sub> H	715 N
Axial rigidity C<sub>a</sub> L	66.9 N/μm
Axial rigidity C<sub>a</sub> M	99.9 N/μm
Axial rigidity C<sub>a</sub> H	130 N/μm
Weight	0.13kg
