SKU: HT050-JUB

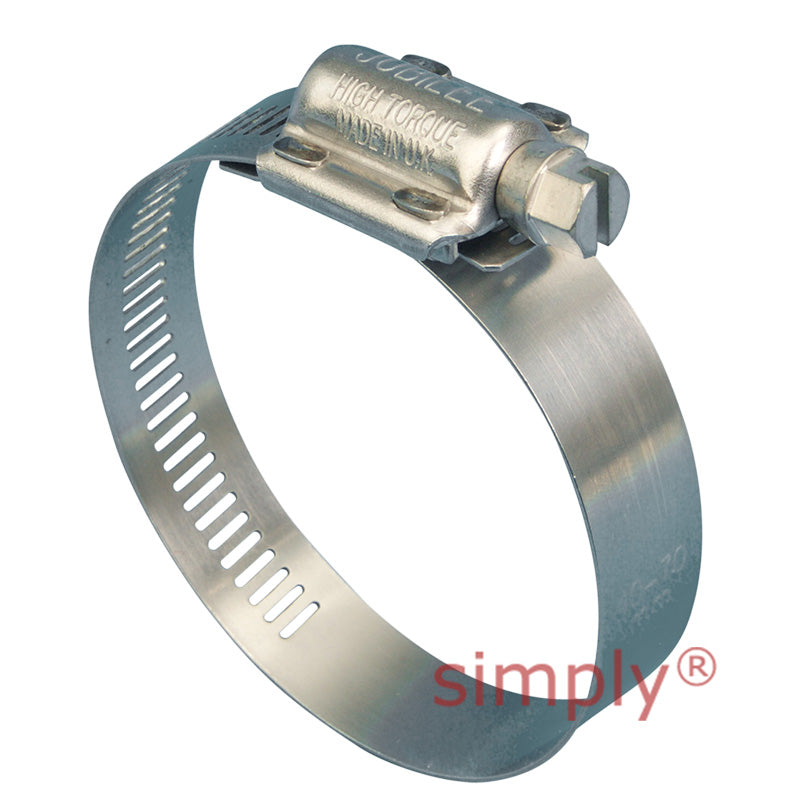

HT050 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 30mm-50mm Band Width 16mm
- Regular price
- $10.00 ex VAT
- Sale price
- $10.00
- Regular price
-
In stock
Quantity Price Breaks
3
$8.90
5
$8.40
9
$8.30
19
$8.20
49
$8.10
74
$8.00
99
$7.50
199
$7.40
249
$7.30
499
$7.20
999
$7.00
SKU:
HT050-JUB
HT050 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 30mm-50mm Band Width 16mm
- Regular price
- $10.00 ex VAT
- Sale price
- $10.00
- Regular price
-
Description
304 Stainless Steel High Torque Jubilee Clips: Jubilee® High Torque Clips are heavy duty and offer better sealing at lower torques. Suitable where clamp force needs to be high such as metal poles, plastic or reinforced hoses. Not suitable for soft hoses.
Benefits: High torque tightening.

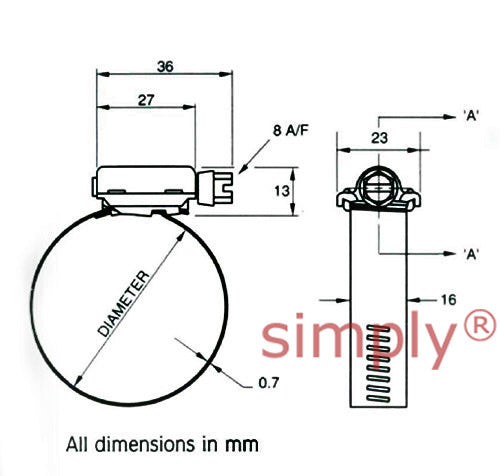

Technical
| Adjustment Range | = | 30mm - 50mm |
| Adjustment Range | = | 1-1/4 - 2 inch |
| Band Width (+/- 0.1) | = | 16mm |
| Band Thickness (+/- 0.1) | = | 0.7mm |
| Recommended Torque | = | 11.9Nm |
| Maximum Torque | = | 17Nm |
| Maximum Pressure | = | 304.5 Psi |
