SKU: HT24-8M-20F

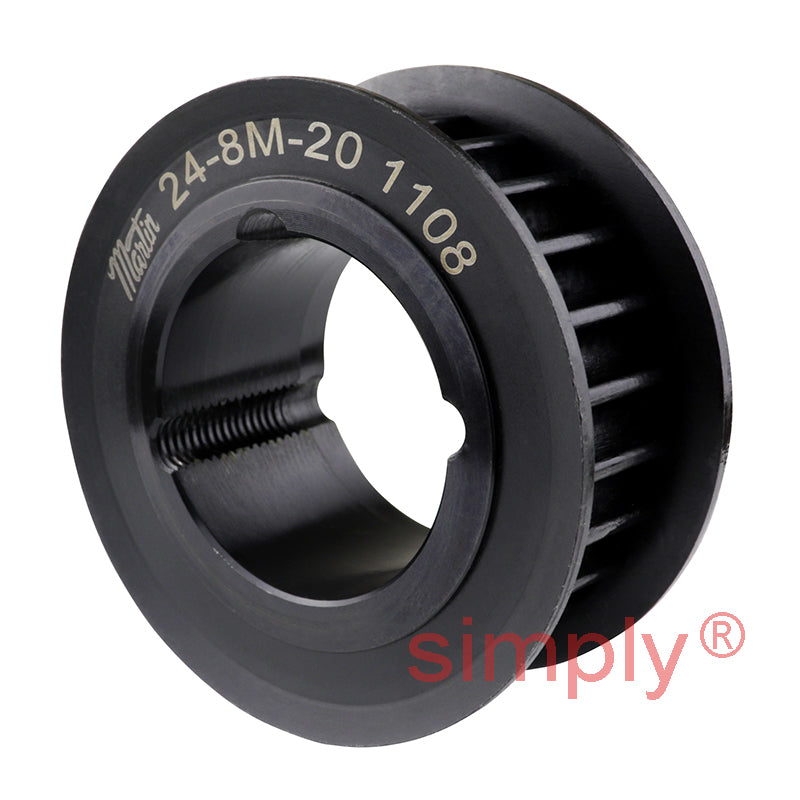

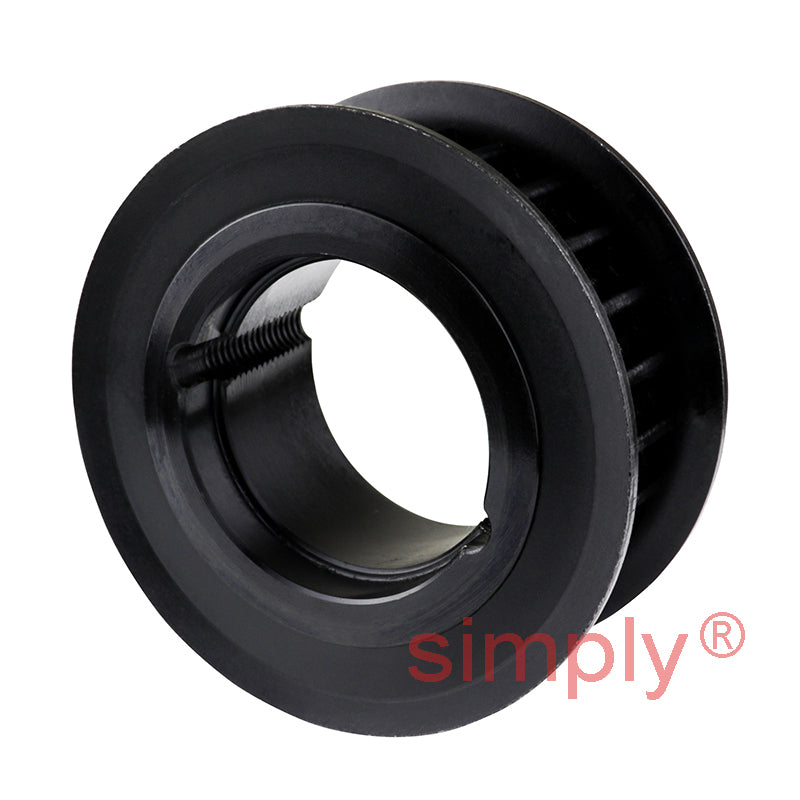

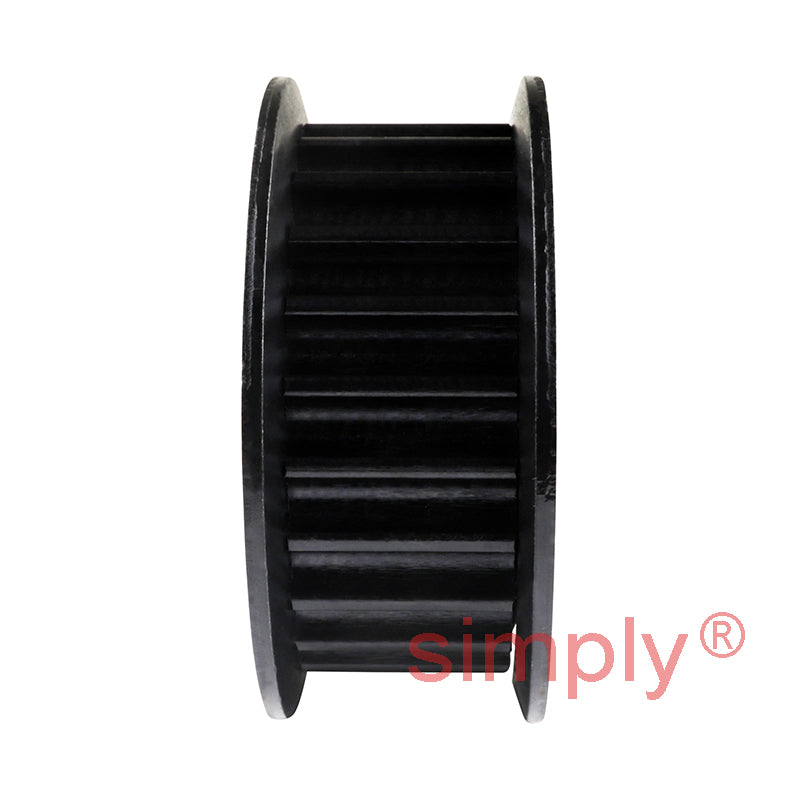

TL24-8M-20F - 8mm Pitch 24 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 20mm Wide Belts

Name: TL24-8M-20F - 8mm Pitch 24 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 20mm Wide Belts
Brand: Major Brand
SKU: HT24-8M-20F
Price: 23.57 USD
Availability: InStock

$23.57 ex VAT

Sale Sold out

Equivalent to: 248M20F

In stock

Price Break

3+ $15.78

5+ $14.90

9+ $14.72

19+ $14.54

49+ $14.37

74+ $14.19

99+ $13.30

199+ $13.12

249+ $12.95

499+ $12.77

999+ $12.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Number of Teeth:: 24
Pitch:: 8mm
Item Type:: Taper Bore Pulley
Maximum Belt Width:: 20mm

Technical

---	Pulley Dimensions
Pitch	8mm
Number of Teeth	24
Type	2F Taper Bore
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=1108+tapered+locking+bush ">1108 Click Here</a>
Dp	61.12mm
De	59.75mm
Df	66mm
Di	44mm
F	28mm
S	22mm
P	6mm
Weight	0.30kg
