SKU: IG100_1-1/64

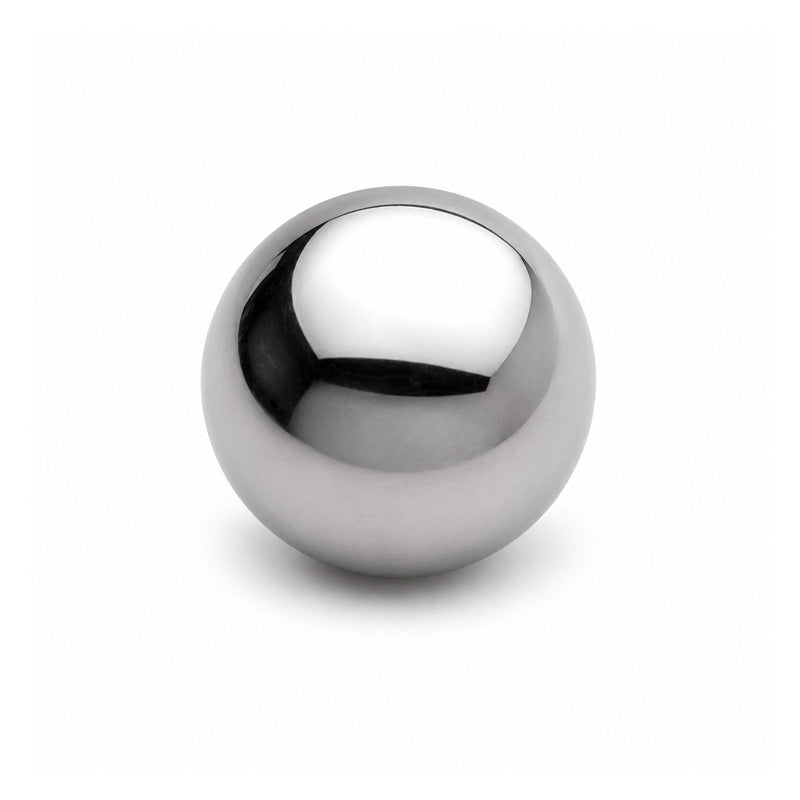

1-1/64 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
1-1/64 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
Out of stock
Share this product
Description
Description
Industry Standard Grade 100 Hardened Steel Ball Bearings: High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium AISI 52100 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle. |
- Brand / Quality:
- Simply Loose Ball - High Quality
- Outside Diameter:
- 25.8mm = 1.016 (1-1/64) inch
- Grade:
- 100
Technical
Technical
| Material | AISI 52100 Chrome Steel |
|---|---|
| Min Crush Load | 27250kg |
| Hardness | 60-67 HRC |
| Hardness Depth | Through Hardened |
| Corrosion Resistance | Keep Oiled |
| Note | Not Drillable |
| Approx Weight Each | 66.84g |
| Attracted to Magnets | Yes |
