• 5 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
1 1

SKU: IG100_5

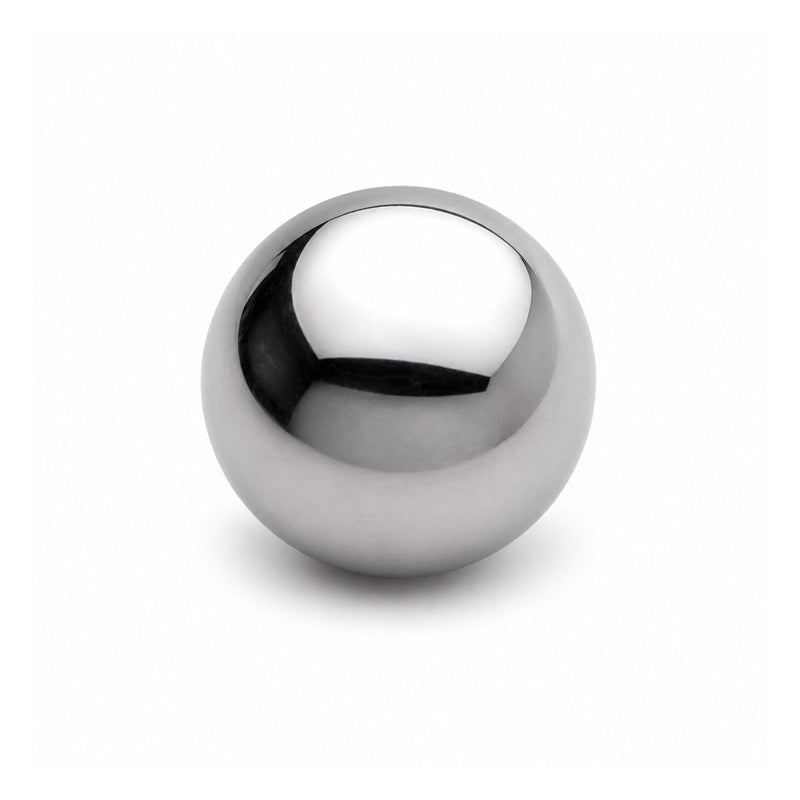

5 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing

5 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
$353.53 ex VAT
$353.53 ex VAT
Sale Sold out

In stock

Price Break
5+ $263.41
10+ $252.77
20+ $247.45
50+ $239.46
100+ $234.14
500+ $220.84
1000+ $186.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Industry Standard Grade 100 Hardened Steel Ball Bearings: High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium AISI 52100 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle.
Manufactured in compliance to the following international standards: AISI52100 / EN31 / BS534A99 / W1.3505 / BS535A99 / UNI100C6 / AFN100C6 / DIN100C6 / JIS G4805 SUJ2

Brand / Quality:
Simply Loose Ball - High Quality
Outside Diameter:
127mm = 5 inch
Grade:
100
Technical
Material AISI 52100 Chrome Steel
Min Crush Load 461350kg
Hardness 60-67 HRC
Hardness Depth Through Hardened
Corrosion Resistance Keep Oiled
Note Not Drillable
Approx Weight Each 8376.00g
Attracted to Magnets Yes
