SKU: IR15x20x12IS1-MB

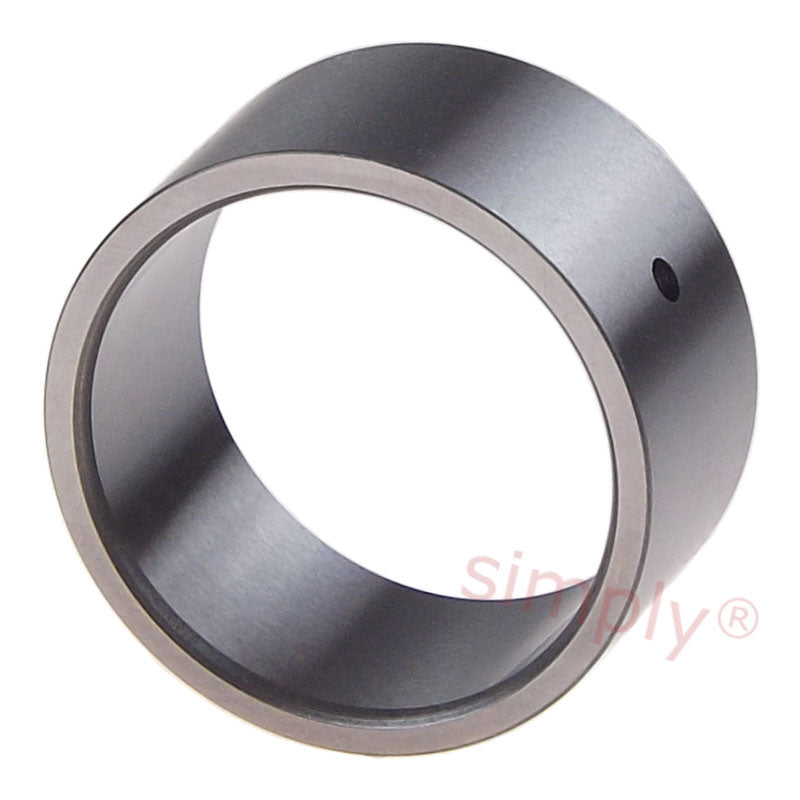

Major Brand Needle Roller Inner Ring with Lubrication Hole IR15x20x12IS1mm

Name: Major Brand Needle Roller Inner Ring with Lubrication Hole IR15x20x12IS1mm
Brand: Major Brand
SKU: IR15x20x12IS1-MB
Price: 9.39 USD
Availability: InStock

$9.39 ex VAT

Sale Sold out

In stock

Price Break

10+ $6.29

19+ $5.94

29+ $5.87

39+ $5.80

49+ $5.73

74+ $5.66

99+ $5.30

199+ $5.23

249+ $5.16

499+ $5.09

999+ $4.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. IS1 inner races are provided with a lubrication hole.
Benefits: Hardened and ground, precision accurate component, lubrication hole, lead in for easier assembly.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 20mm
Width:: 12mm

Technical

d	15mm
F	20mm
B	12mm
r1r2	0.3mm
Weight	12 g
