SKU: IR25x30x16IS1-MB

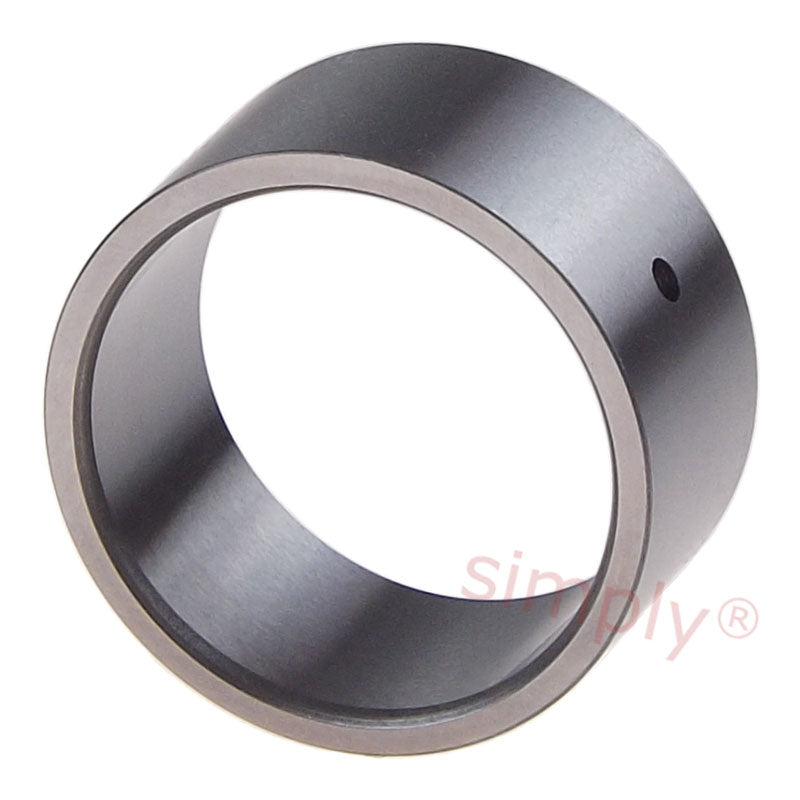

Major Brand Needle Roller Inner Ring with Lubrication Hole IR25x30x16IS1mm

Name: Major Brand Needle Roller Inner Ring with Lubrication Hole IR25x30x16IS1mm
Brand: Major Brand
SKU: IR25x30x16IS1-MB
Price: 14.40 USD
Availability: InStock

$14.40 ex VAT

Sale Sold out

In stock

Price Break

10+ $9.65

19+ $9.11

29+ $9.00

39+ $8.89

49+ $8.78

74+ $8.67

99+ $8.13

199+ $8.02

249+ $7.91

499+ $7.81

999+ $7.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. IS1 inner races are provided with a lubrication hole.
Benefits: Hardened and ground, precision accurate component, lubrication hole, lead in for easier assembly.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 30mm
Width:: 16mm

Technical

d	25mm
F	30mm
B	16mm
r1r2	0.3mm
Weight	26 g
