SKU: IR40x50x20IS1-MB

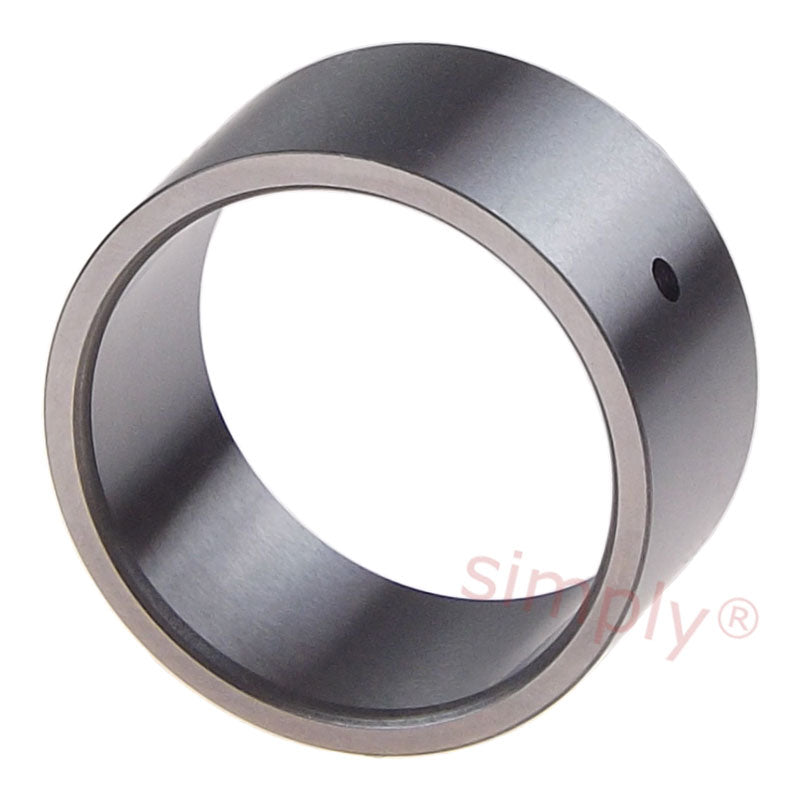

Major Brand Needle Roller Inner Ring with Lubrication Hole IR40x50x20IS1mm

Name: Major Brand Needle Roller Inner Ring with Lubrication Hole IR40x50x20IS1mm
Brand: Major Brand
SKU: IR40x50x20IS1-MB
Price: 29.15 USD
Availability: InStock

$29.15 ex VAT

Sale Sold out

In stock

Price Break

10+ $19.52

19+ $18.43

29+ $18.21

39+ $17.99

49+ $17.77

74+ $17.55

99+ $16.45

199+ $16.23

249+ $16.01

499+ $15.79

999+ $15.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. IS1 inner races are provided with a lubrication hole.
Benefits: Hardened and ground, precision accurate component, lubrication hole, lead in for easier assembly.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 50mm
Width:: 20mm

Technical

d	40mm
F	50mm
B	20mm
r1r2	1mm
Weight	110 g
