SKU: IRZ10x14x14IS1-EU

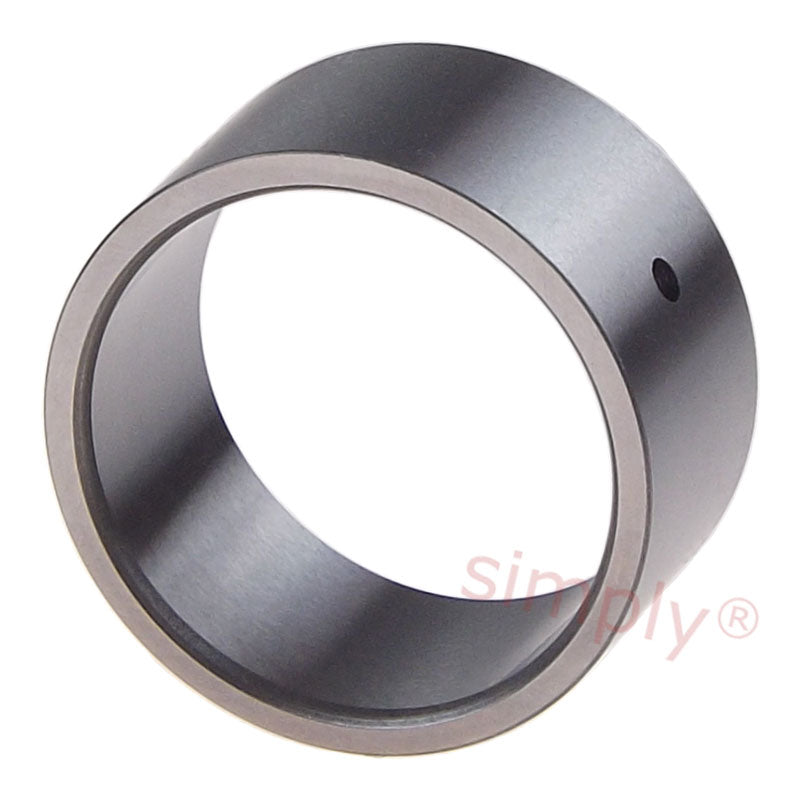

Budget Needle Roller Inner Ring IRZ10x14x14IS1mm
Budget Needle Roller Inner Ring IRZ10x14x14IS1mm
Regular price
$4.15
ex VAT
Regular price
Sale price
$4.15
ex VAT
In stock
Price Break
10+
$2.78
19+
$2.62
29+
$2.59
39+
$2.56
49+
$2.53
74+
$2.49
99+
$2.34
199+
$2.31
249+
$2.28
499+
$2.25
999+
$2.18
Quantity
Couldn't load pickup availability
Description
Description
|
Budget IRZ Series Inner Rings: Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use of the full width of the bearing surface when used with needle roller bearings no lead is provided. All IRZ inner rings are provided with a lubrication hole. Benefits: Hardened and ground, precision component, offers the use of the full width of the bearing surface. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 14mm
Technical
Technical
| d | 10mm |
|---|---|
| F | 14mm |
| B | 14mm |
| r1r2 | 0.3mm |
| Weight | 8 g |
