SKU: JSC031MS-JUB

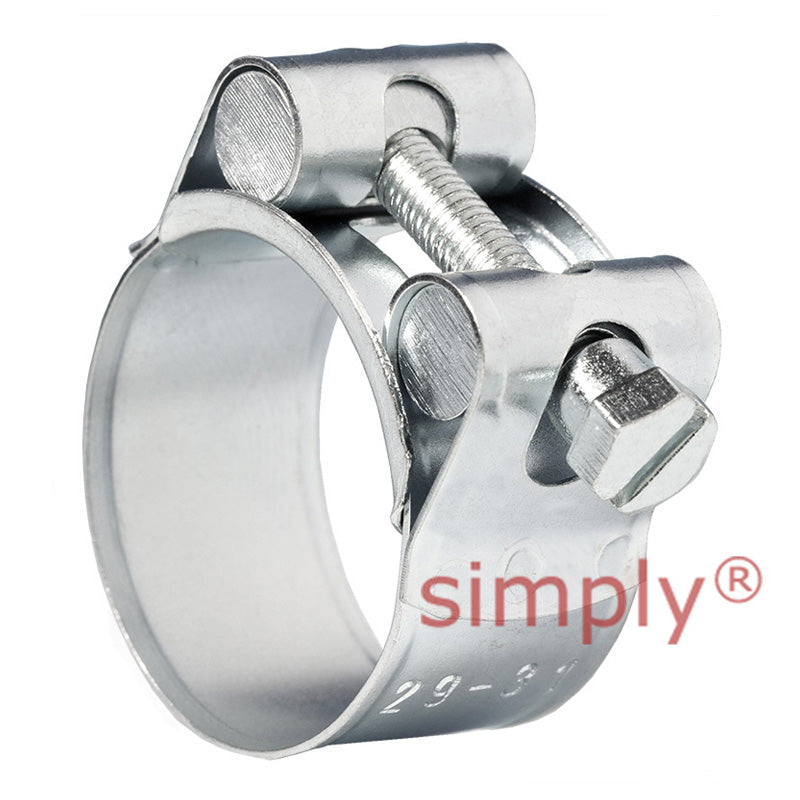

JSC031MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 29mm-31mm Band Width 18mm
JSC031MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 29mm-31mm Band Width 18mm
Regular price
$3.80
ex VAT
Regular price
Sale price
$3.80
ex VAT
Low stock
Price Break
3+
$2.00
5+
$1.72
9+
$1.57
19+
$1.43
49+
$1.14
74+
$1.00
99+
$0.86
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 29mm
- Max Adjustment Range:
- 31mm
Technical
Technical
| Adjustment Range | 29mm - 31mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
