SKU: JSC097SS316-JUB

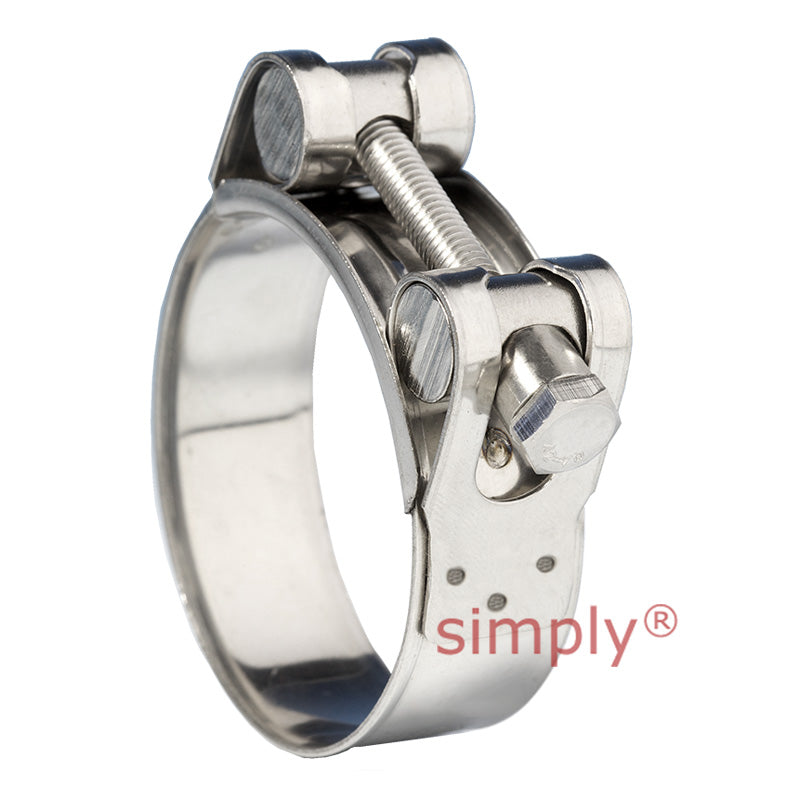

JSC097SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 92mm - 97mm Band Width 25mm
- Regular price
- $27.83 ex VAT
- Sale price
- $27.83
- Regular price
-
Not in stock
Quantity Price Breaks
3
$24.77
5
$23.38
9
$23.10
19
$22.82
49
$22.54
74
$22.26
99
$20.87
199
$20.59
249
$20.32
499
$20.04
999
$19.48
SKU:
JSC097SS316-JUB
JSC097SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 92mm - 97mm Band Width 25mm
- Regular price
- $27.83 ex VAT
- Sale price
- $27.83
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 92mm - 97mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.2mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
