SKU: JSC103SS316-JUB

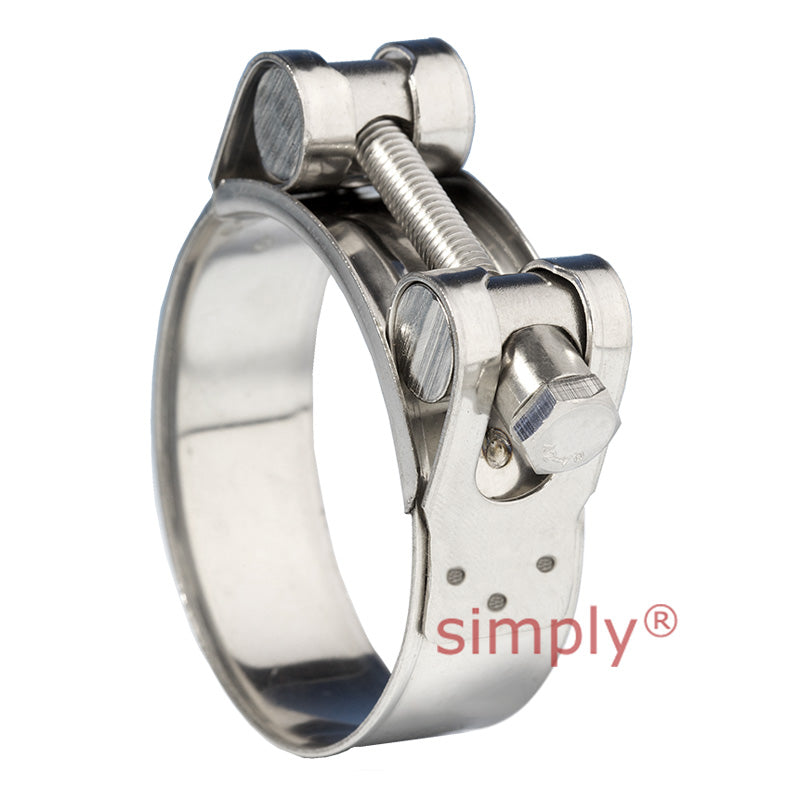

JSC103SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 98mm-103mm Band Width 25mm
- Regular price
- $28.39 ex VAT
- Sale price
- $28.39
- Regular price
-
In stock
Quantity Price Breaks
3
$25.27
5
$23.85
9
$23.56
19
$23.28
49
$23.00
74
$22.71
99
$21.29
199
$21.01
249
$20.72
499
$20.44
999
$19.87
SKU:
JSC103SS316-JUB
JSC103SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 98mm-103mm Band Width 25mm
- Regular price
- $28.39 ex VAT
- Sale price
- $28.39
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 98mm - 103mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.2mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
