SKU: JSU042XP0

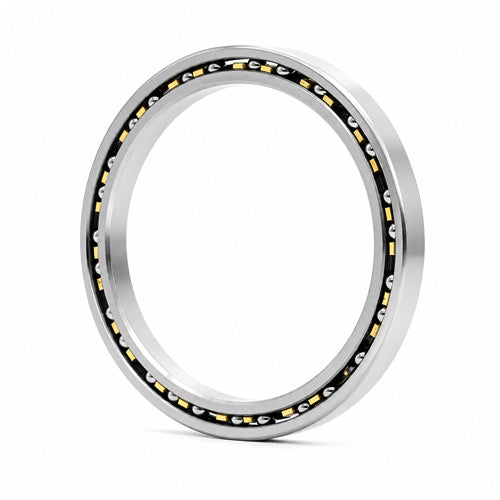

Silverthin JSU042XP0 Thin Section Sealed Four Point Contact Ball Bearing 4.25x5x0.5 inch - Allow 7-10 Days
Silverthin JSU042XP0 Thin Section Sealed Four Point Contact Ball Bearing 4.25x5x0.5 inch - Allow 7-10 Days
Equivalent to: JU042XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 127mm = 5 inch
- Width:
- 12.7mm = 1/2 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 5 inch |
| Width | 0.5 inch |
| L1 | 4.4 inch |
| L2 | 4.797 inch |
| Static Radial Load | 9.875 kN |
| Dynamic Radial Load | 4.106 kN |
| Static Thrust Load | 24.741 kN |
| Dynamic Thrust Load | 10.209 kN |
| Static Moment Load | 22.886 kN |
| Dynamic Moment Load | 9.448 kN |
| Torque Max No Load | 3.2 Oz-In |
| Weight | 0.2631 kg |
