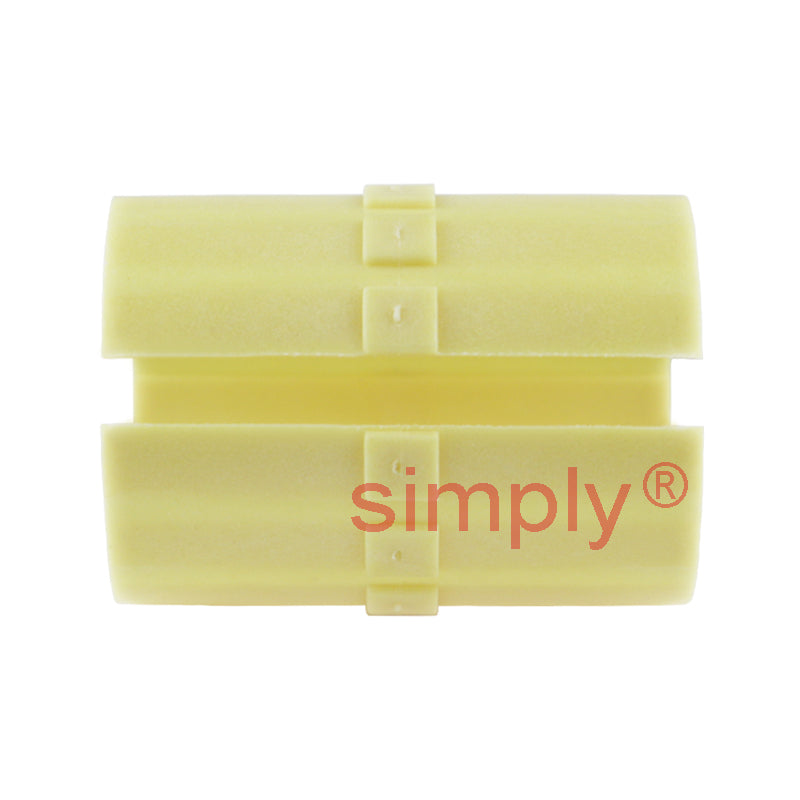

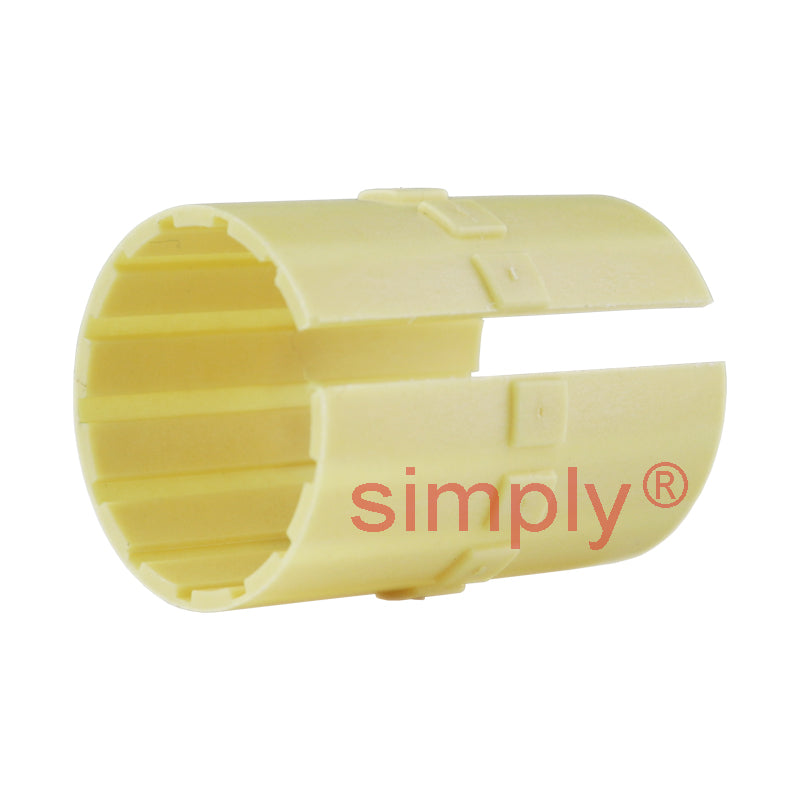

• Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
  • Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
  • Igus
1 3

SKU: JUM-02-25

Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm

Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
$25.21 ex VAT
$25.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $16.88
19+ $15.93
29+ $15.74
39+ $15.55
49+ $15.36
74+ $15.17
99+ $14.23
199+ $14.04
249+ $13.85
499+ $13.66
999+ $13.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

IGUS Iglidur® J drylin R Liners: The material used in this product is iglidur® J. This material is suitable for indoor or outdoor use and is maintenance free up to 5 years. In environments such as bag forming, fulling and sealing machinery this product provides a long service life making this a very cost effective alternative to other products alike.

Brand / Quality:
Igus - High Quality
Inside Diameter:
25mm
Outside Diameter:
28mm
Length:
39mm
Technical
d1 25mm
d2 28mm
b1 39mm
r 5mm
t 0.8mm
z 4mm
di 28mm
B 40mm
r1 5mm
t1 1mm
f1 2mm
Z1 4.1mm
d1 Tolerance +0.030 +0.070mm
di Tolerance H7
B Tolerance h10
r1 Tolerance +0.05mm
t1 Tolerance +0.1mm
f1 Tolerance +0.5mm
z1 Tolerance 0.2mm
Max. long-term application temperature 90 deg C
Lower application temperature -50 deg C
