• KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm
  • KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm
1 2

SKU: K-20-10+S-KUK

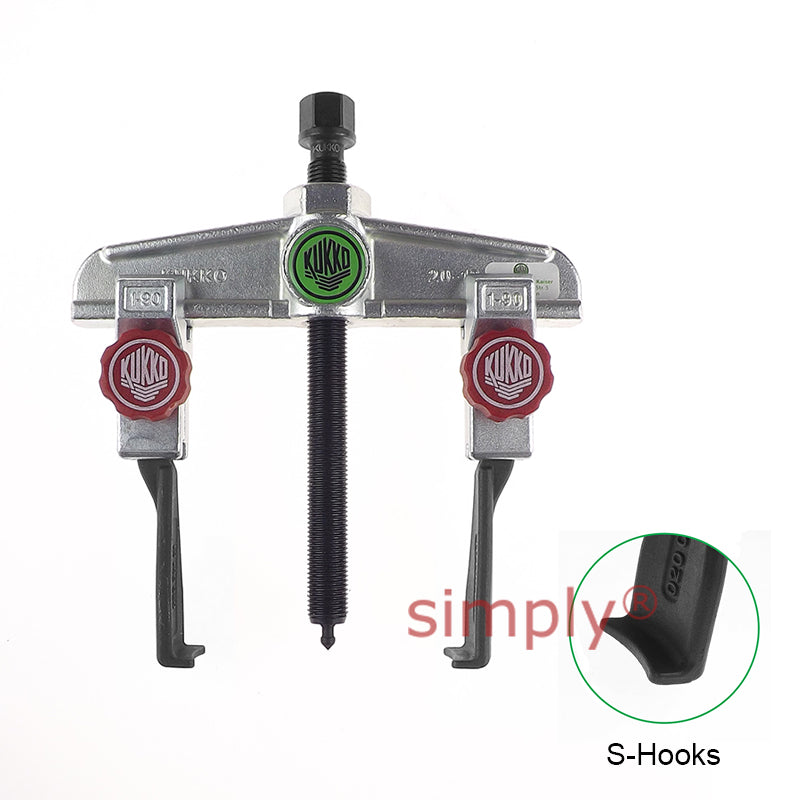

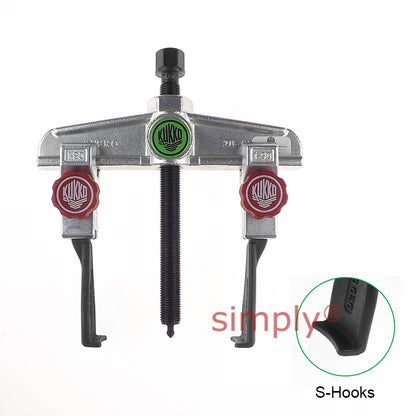

KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm

KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm
$181.43 ex VAT
$181.43 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

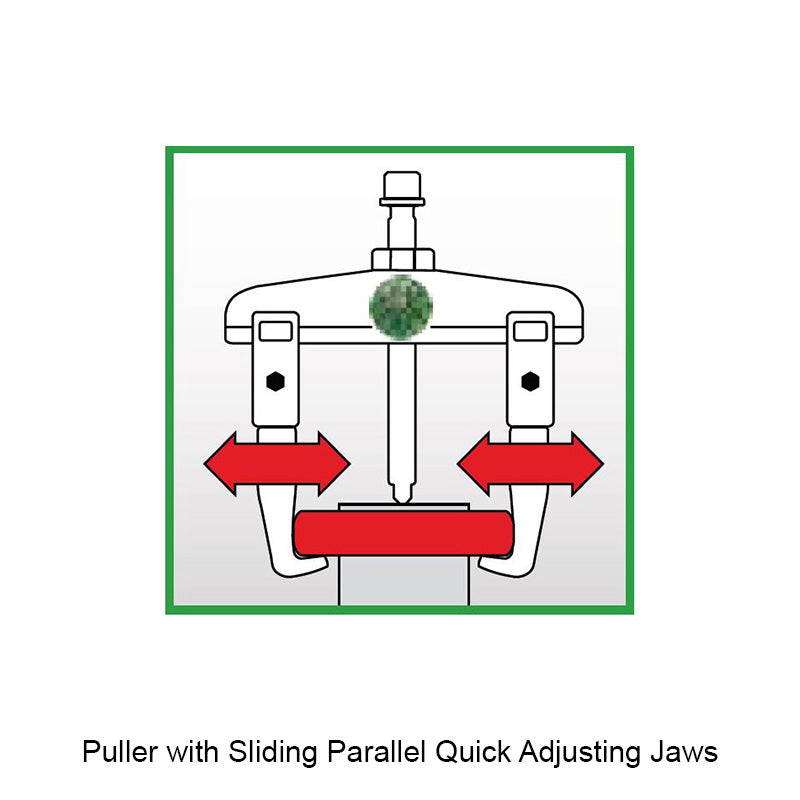

KUKKO Series 20 Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws:

  • Thin pulling hook with quick adjusting capability quick adjust.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
  • Mechanical pressure screw.

    • Benefits:
  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.
  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
    • Brand / Quality:
    KUKKO - High Quality
    Width:
    120mm
    Length:
    100mm
    Technical
    Spread 120mm
    Length 100mm
    Spread used Internal 70-180mm
    Hexagon Drive (Male) 17mm
    Max Load 2.5t
    Max Torque 35 Nm
    Weight 1.42kg
