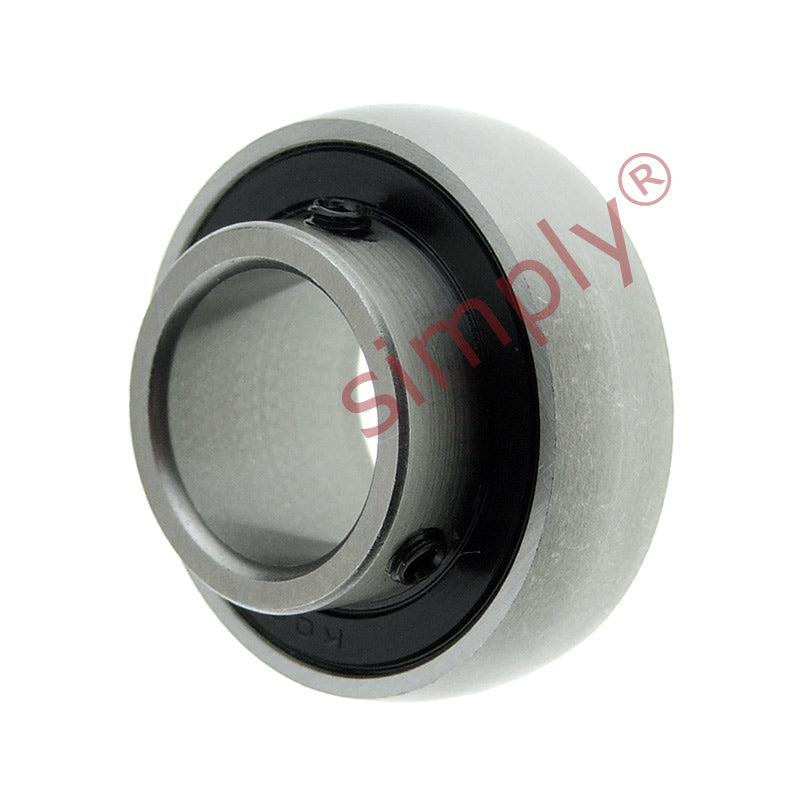

• K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
1 1

SKU: K006

K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia

K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
$20.50 ex VAT
$20.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.74
4+ $12.96
9+ $12.81
19+ $12.65
49+ $12.50
99+ $12.35
499+ $11.57
999+ $11.42
1999+ $11.27
2999+ $11.11
4999+ $10.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
55mm
Style:
K
Technical
Inside Diameter d 30mm
Outside Diameter D 55mm
Bi 24.5mm
Be 13mm
r 1.5mm
n 6.5mm
G 5mm
W 38mm
Grub screw M5X0.5
Dynamic load 13230N ~ 1349.085 kgf
Static load 8281N ~ 844.427 kgf
Weight 0.16 kg
