SKU: K185X195X37L1-NTN

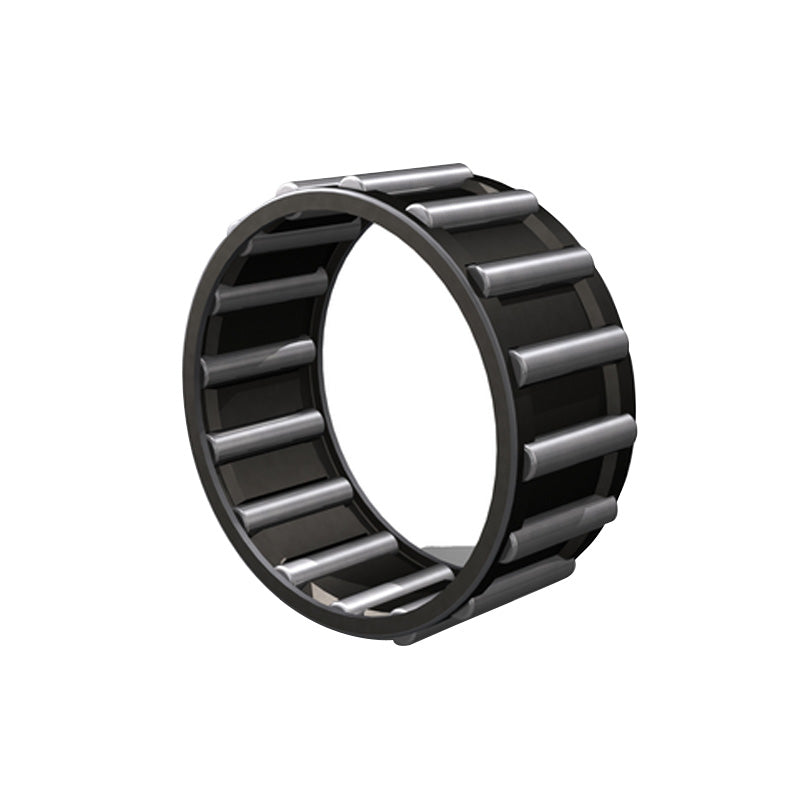

NTN K185X195X37L1 Needle Roller and Cage Assembly 185x195x37mm - Allow 2-3 Days
NTN K185X195X37L1 Needle Roller and Cage Assembly 185x195x37mm - Allow 2-3 Days
Regular price
$869.26
ex VAT
Regular price
Sale price
$869.26
ex VAT
In stock
Price Break
3+
$621.41
4+
$588.71
9+
$556.00
19+
$523.30
49+
$510.21
99+
$497.13
499+
$431.72
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 185mm
- Outside Diameter:
- 195mm
- Width:
- 37mm
Technical
Technical
| Fw - Inside diameter | 185mm |
|---|---|
| Ew - Outside diameter | 195mm |
| Bc - Cage width | 37mm |
| Cr - Dynamic load rating | 131 kN |
| C0r - Static load rating | 425 kN |
| N - Grease lubrication limit speed | 1500 tr/min |
| N - Oil lubrication limit speed | 2200 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
