SKU: K3x5x9TN-EU

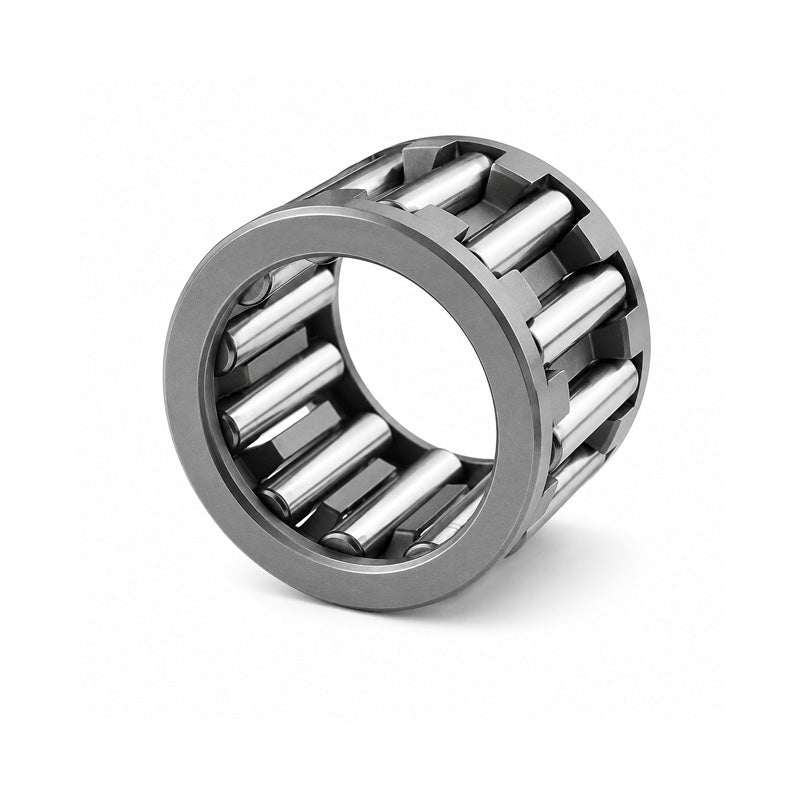

K3x5x9TN Budget Needle Roller Cage Assembly 3x5x9mm
K3x5x9TN Budget Needle Roller Cage Assembly 3x5x9mm
Regular price
$3.40
ex VAT
Regular price
Sale price
$3.40
ex VAT
In stock
Price Break
10+
$2.28
19+
$2.15
29+
$2.13
39+
$2.10
49+
$2.07
74+
$2.05
99+
$1.92
199+
$1.89
249+
$1.87
499+
$1.84
999+
$1.79
Quantity
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 5mm
- Width:
- 9mm
Technical
Technical
| Fw | 3mm |
|---|---|
| Ew | 5mm |
| U | 9mm |
| Dynamic load C | 1720 N |
| Static load Co | 1630 N |
| Fatigue load limit Pu | 170 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| Weight | 0.4 g |
