SKU: K60X68X27-NTN

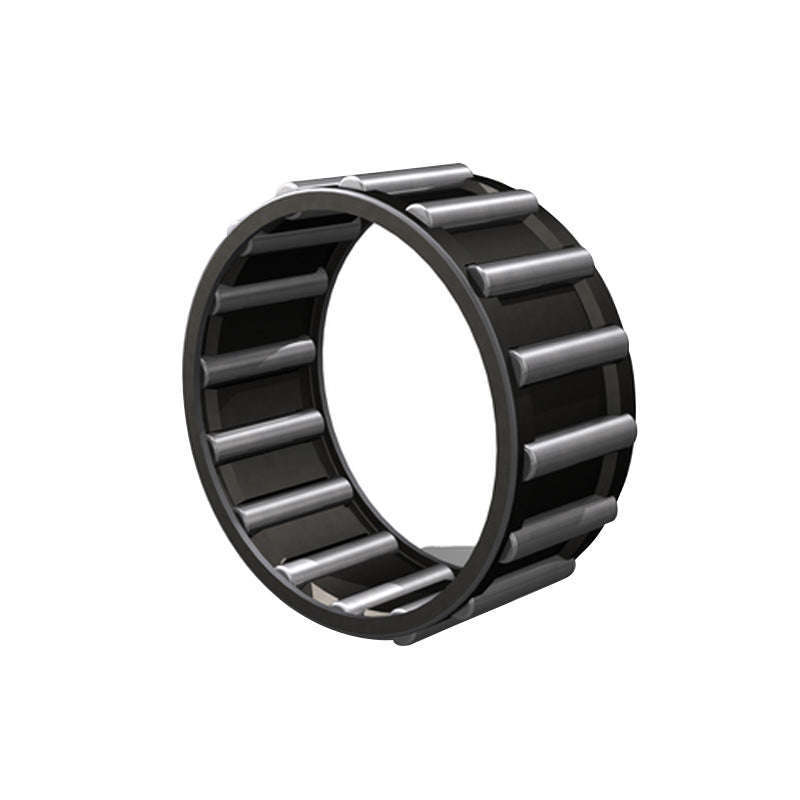

NTN K60X68X27 Needle Roller and Cage Assembly 60x68x27mm - Allow 2-3 Days
NTN K60X68X27 Needle Roller and Cage Assembly 60x68x27mm - Allow 2-3 Days
Regular price
$20.60
ex VAT
Regular price
Sale price
$20.60
ex VAT
In stock
Price Break
3+
$15.35
4+
$14.73
9+
$14.42
19+
$13.95
49+
$13.64
99+
$12.87
499+
$10.85
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 68mm
- Width:
- 27mm
Technical
Technical
| Fw - Inside diameter | 60mm |
|---|---|
| Ew - Outside diameter | 68mm |
| Bc - Cage width | 27mm |
| Cr - Dynamic load rating | 52 kN |
| C0r - Static load rating | 105 kN |
| N - Grease lubrication limit speed | 4300 tr/min |
| N - Oil lubrication limit speed | 6500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
