SKU: K70X78X30-NTN

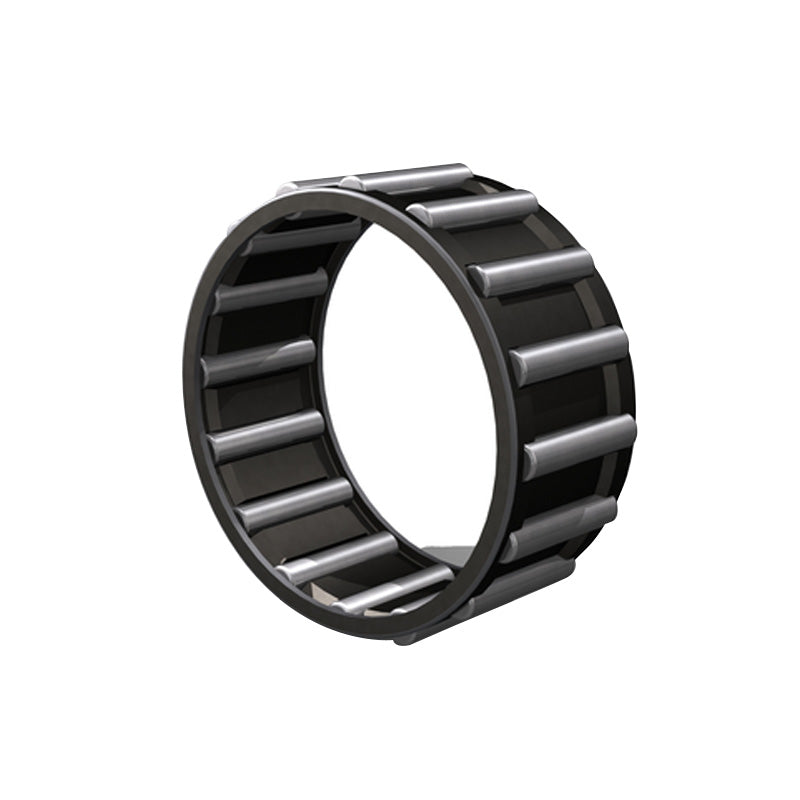

NTN K70X78X30 Needle Roller and Cage Assembly 70x78x30mm - Allow 2-3 Days
NTN K70X78X30 Needle Roller and Cage Assembly 70x78x30mm - Allow 2-3 Days
Regular price
$29.42
ex VAT
Regular price
Sale price
$29.42
ex VAT
In stock
Price Break
3+
$21.92
4+
$21.03
9+
$20.59
19+
$19.93
49+
$19.48
99+
$18.38
499+
$15.50
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 78mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 70mm |
|---|---|
| Ew - Outside diameter | 78mm |
| Bc - Cage width | 30mm |
| Cr - Dynamic load rating | 65.5 kN |
| C0r - Static load rating | 149 kN |
| N - Grease lubrication limit speed | 3700 tr/min |
| N - Oil lubrication limit speed | 5500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
