• NTN K81105T2 Needle Roller Cage Only 25x42x5mm - Allow 2-3 Days
  • NTN
1 2

SKU: K81105T2-NTN

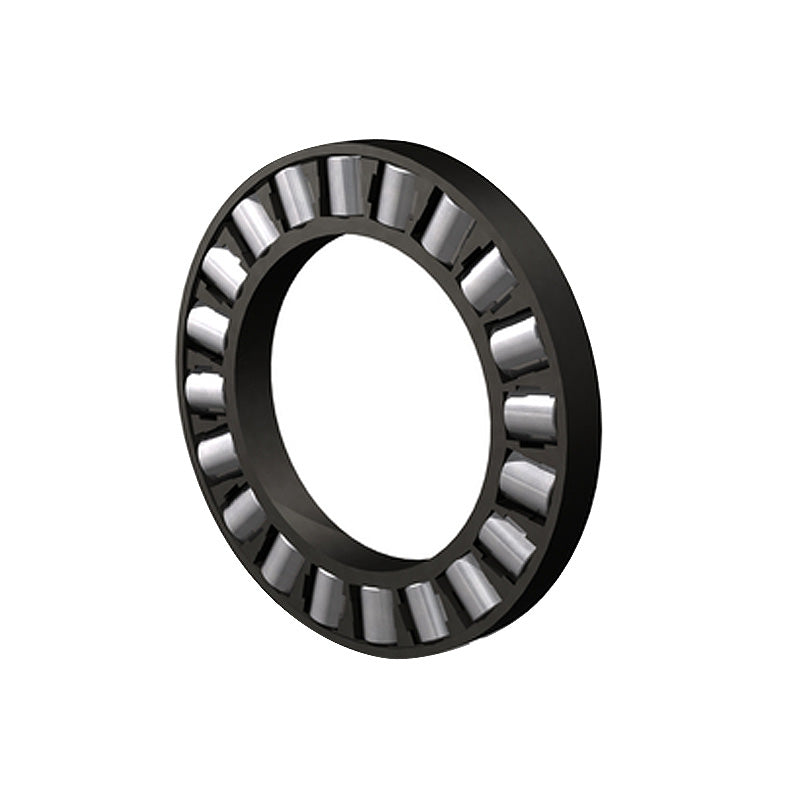

NTN K81105T2 Needle Roller Cage Only 25x42x5mm - Allow 2-3 Days

NTN K81105T2 Needle Roller Cage Only 25x42x5mm - Allow 2-3 Days
$16.94 ex VAT
$16.94 ex VAT
Sale Sold out

Low stock

Price Break
3+ $11.35
4+ $10.71
9+ $10.58
19+ $10.46
49+ $10.33
99+ $10.20
499+ $9.56
999+ $9.44
1999+ $9.31
2999+ $9.18
4999+ $8.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum. Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life.
Benefits: High axial load capacity, low friction, compact and lightweight design
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
5mm
Technical
Dc1 - Inside diameter 25mm
Dc - Outside diameter 42mm
Dw - Roller Width 5mm
WS inner ring reference WS81105
GS outer ring reference GS81105
Ea - Rollers reference outer diameter 38.7mm
Eb - Rollers reference inner diameter 27.6mm
Ca - Dynamic axial load rating 27.3 kN
C0a - Static axial load rating 68 kN
Cua - Limit axial load rating 8.25 kN
Grease lubrication limit speed 1800 tr/min
Oil lubrication limit speed 7000 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
