• NTN K81107T2 Needle Roller Cage Only 35x52x5mm - Allow 2-3 Days
  • NTN
1 2

SKU: K81107T2-NTN

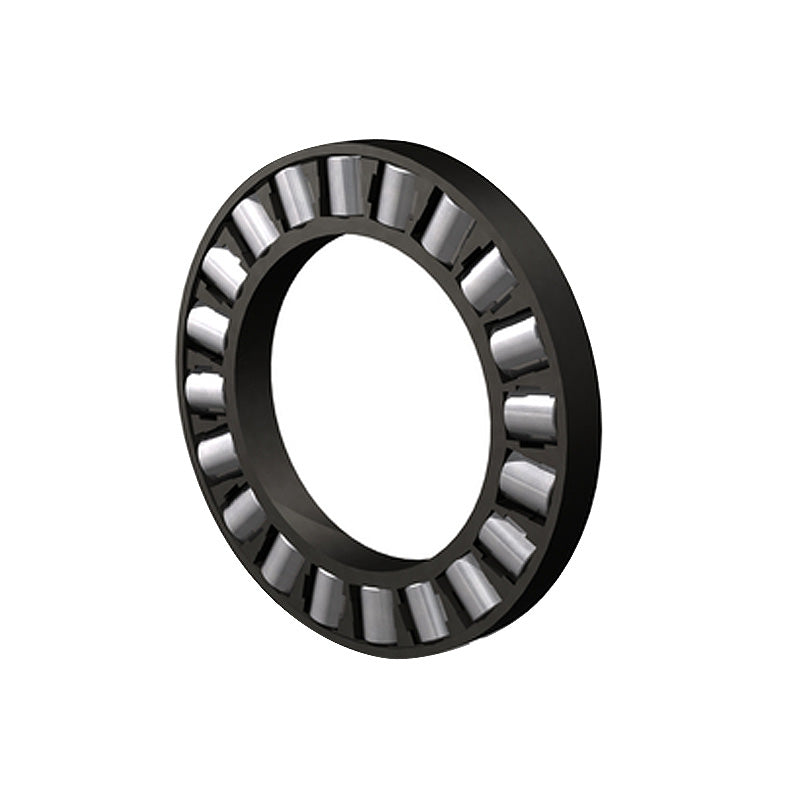

NTN K81107T2 Needle Roller Cage Only 35x52x5mm - Allow 2-3 Days

NTN K81107T2 Needle Roller Cage Only 35x52x5mm - Allow 2-3 Days
$17.63 ex VAT
$17.63 ex VAT
Sale Sold out

Low stock

Price Break
3+ $13.14
4+ $12.61
9+ $12.34
19+ $11.94
49+ $11.68
99+ $11.01
499+ $9.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum. Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life.
Benefits: High axial load capacity, low friction, compact and lightweight design
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
52mm
Width:
5mm
Technical
Dc1 - Inside diameter 35mm
Dc - Outside diameter 52mm
Dw - Roller Width 5mm
WS inner ring reference WS81107
GS outer ring reference GS81107
Ea - Rollers reference outer diameter 48.9mm
Eb - Rollers reference inner diameter 38mm
Ca - Dynamic axial load rating 31 kN
C0a - Static axial load rating 87 kN
Cua - Limit axial load rating 10.6 kN
Grease lubrication limit speed 1400 tr/min
Oil lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
tmax - Maximum operating temperature +120 Deg C
