SKU: K8x11x13TN-EU

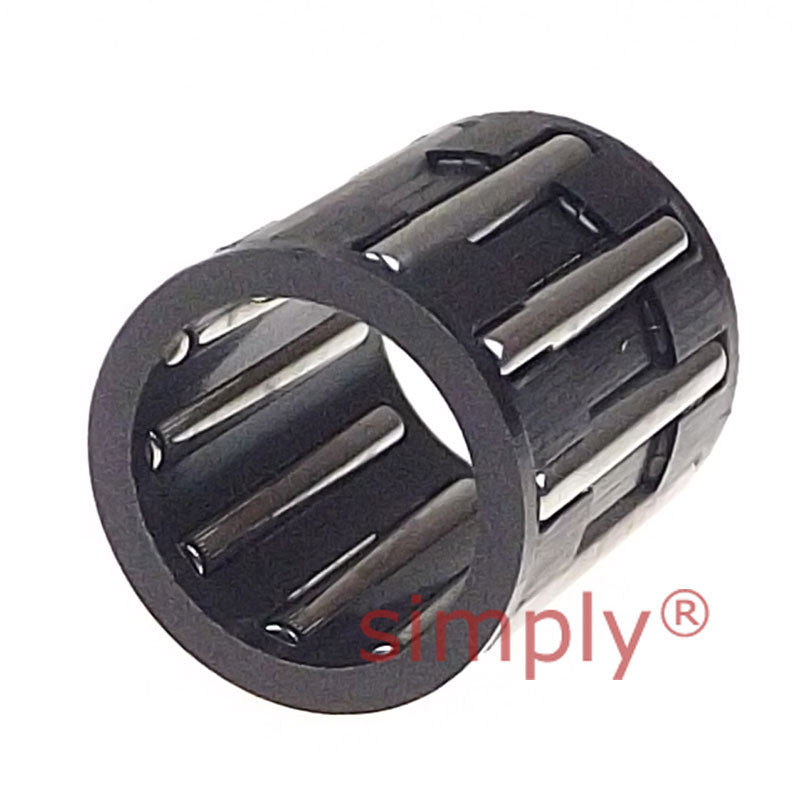

K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
Regular price
$4.66
ex VAT
Regular price
Sale price
$4.66
ex VAT
Equivalent to: KT81113
In stock
Price Break
10+
$3.12
19+
$2.95
29+
$2.91
39+
$2.88
49+
$2.84
74+
$2.81
99+
$2.63
199+
$2.60
249+
$2.56
499+
$2.53
999+
$2.46
Quantity
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 11mm
- Width:
- 13mm
Technical
Technical
| Fw | 8mm |
|---|---|
| Ew | 11mm |
| U | 13mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| Weight | 1.7 g |
