SKU: KALI-05

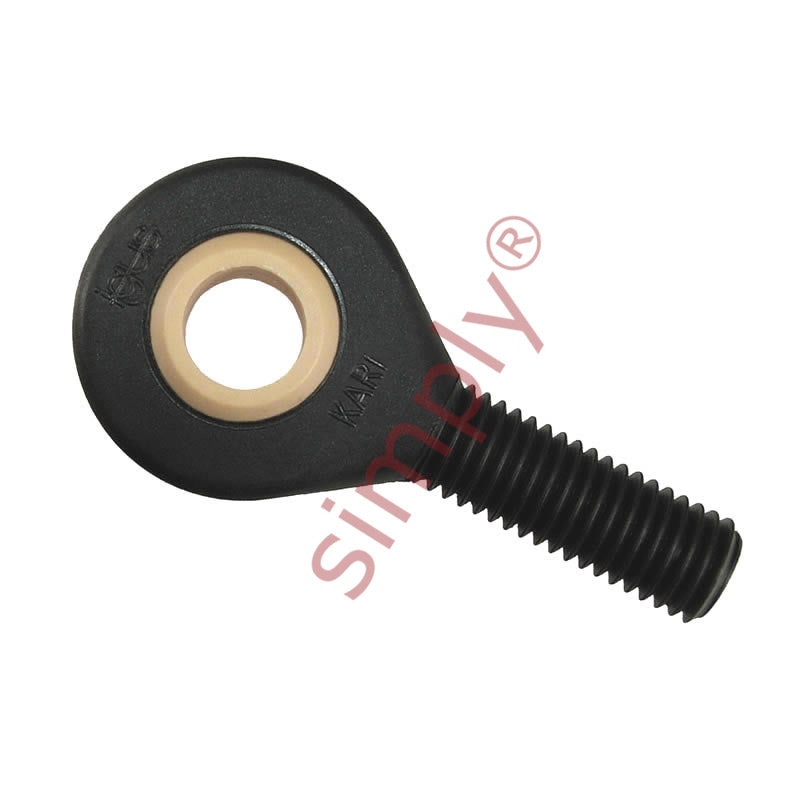

igubal KALI05 Left Hand Male Plastic Rod End 0.312 inch Bore 5/16-24 Thread

igubal KALI05 Left Hand Male Plastic Rod End 0.312 inch Bore 5/16-24 Thread
$10.56 ex VAT
$10.56 ex VAT
Sale Sold out

In stock

Price Break
4+ $7.07
9+ $6.67
19+ $6.60
29+ $6.52
39+ $6.44
49+ $6.36
59+ $5.96
69+ $5.88
79+ $5.80
89+ $5.72
99+ $5.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
5/16-24
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
7.93mm = 0.312 (5/16) inch
Technical
d1 0.312 inch
d2 0.875 inch
d3 5/16-24 inch
C1 0.312 inch
B 0.437 inch
h 1.875 inch
l1 1.25 inch
l2 2.313 inch
Max pivot angle 25°
Max static tensile strength (short term) 1100 N
Max static tensile strength (long term) 550 N
Max radial load (short term) 150 N
Max radial load (long term) 75 N
Min thread depth 0.875 inch
Max torque outside thread 2 Nm
Max torque through ball 10 Nm
Weight 6 g
