SKU: KALI-16
igubal KALI16 Left Hand Male Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
igubal KALI16 Left Hand Male Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
Regular price
$23.52
ex VAT
Regular price
Sale price
$23.52
ex VAT
In stock
Price Break
4+
$17.52
9+
$16.82
19+
$16.46
29+
$15.93
39+
$15.58
49+
$14.69
59+
$12.39
69+
$0.00
79+
$0.00
89+
$0.00
99+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS igubal® KALI imperial series left hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals. Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C Materials: Ball material iglidur® W300, Housing: igumid G Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free |
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- 1-12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25.4mm = 1 inch

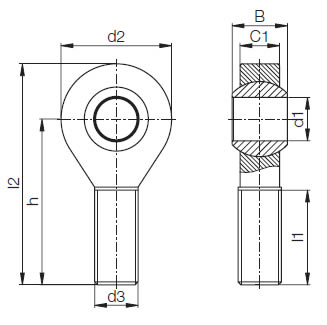

Technical
Technical
| d1 | 1 inch |
|---|---|
| d2 | 2.75 inch |
| d3 | 1-12 inch |
| C1 | 1 inch |
| B | 1.375 inch |
| h | 4.125 inch |
| l1 | 2.35 inch |
| l2 | 5.5 inch |
| Max pivot angle | 20° |
| Max static tensile strength (short term) | 4400 N |
| Max static tensile strength (long term) | 2200 N |
| Max radial load (short term) | 1300 N |
| Max radial load (long term) | 650 N |
| Min thread depth | 1.488 inch |
| Max torque outside thread | 45 Nm |
| Max torque through ball | 85 Nm |
| Weight | 143.3 g |
