SKU: KALM-10.F.MH

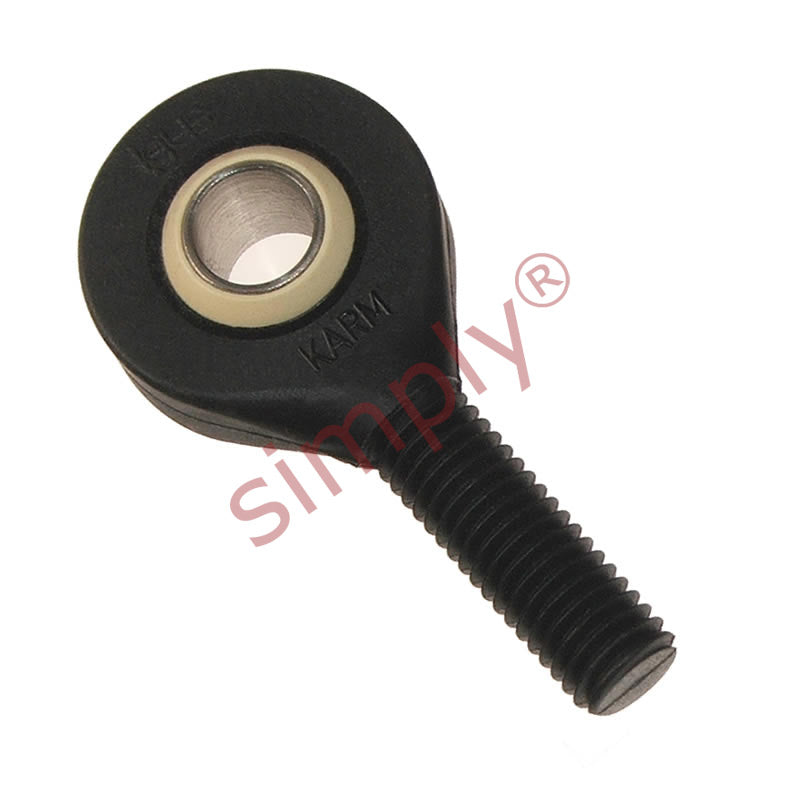

igubal KALM10FMH Left Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread with Metal Insert - Allow 2-3 Days
igubal KALM10FMH Left Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread with Metal Insert - Allow 2-3 Days
Regular price
$13.94
ex VAT
Regular price
Sale price
$13.94
ex VAT
In stock
Price Break
4+
$9.34
9+
$8.81
19+
$8.71
29+
$8.60
39+
$8.50
49+
$8.39
59+
$7.87
69+
$7.76
79+
$7.66
89+
$7.55
99+
$7.34
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 30mm |
| d3 | M10x1.25 |
| C1 | 10.5mm |
| B | 14mm |
| h | 48mm |
| l1 | 28mm |
| l2 | 63mm |
| Max pivot angle | 25° |
| Max static tensile strength (short term) | 2500 N |
| Max static tensile strength (long term) | 1250 N |
| Max radial load (short term) | 300 N |
| Max radial load (long term) | 150 N |
| Min thread depth | 20mm |
| Max torque strength outside thread | 3 Nm |
| Max torque through ball (standard) | 20 Nm |
| Max torque through ball (MH) | 50 Nm |
| Weight | 12.5 g |
