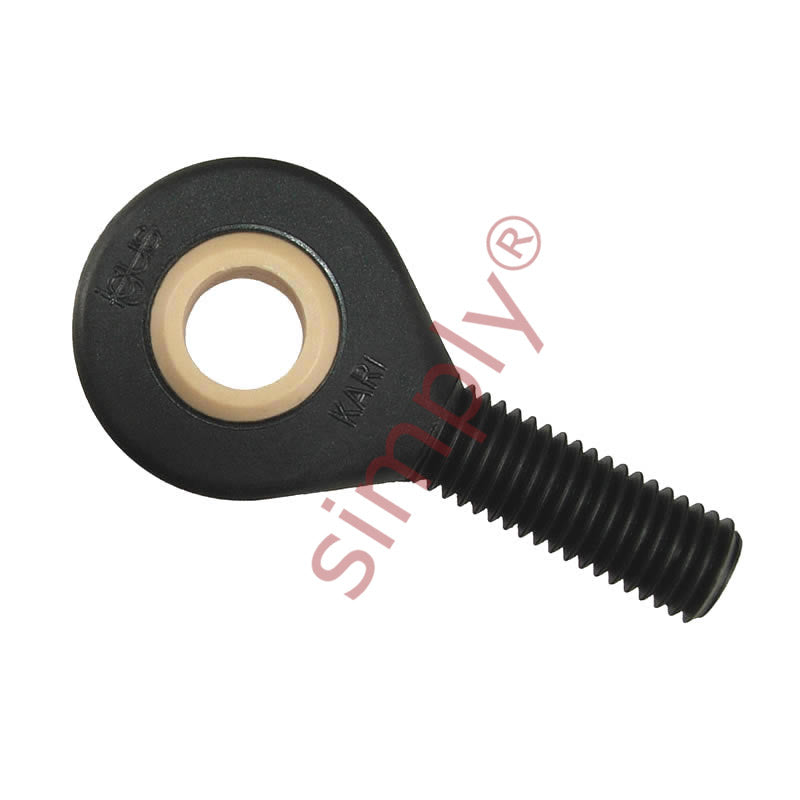

• igubal KARI06 Right Hand Male Plastic Rod End 0.375 inch Bore 3/8-24 Thread
  • Igus
1 2

SKU: KARI-06

igubal KARI06 Right Hand Male Plastic Rod End 0.375 inch Bore 3/8-24 Thread

igubal KARI06 Right Hand Male Plastic Rod End 0.375 inch Bore 3/8-24 Thread
$11.28 ex VAT
$11.28 ex VAT
Sale Sold out

In stock

Price Break
4+ $7.56
9+ $7.14
19+ $7.05
29+ $6.97
39+ $6.88
49+ $6.80
59+ $6.37
69+ $6.29
79+ $6.20
89+ $6.12
99+ $5.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
3/8-24
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
9.53mm = 0.375 (3/8) inch
Technical
d1 0.375 inch
d2 1 inch
d3 3/8-24 inch
C1 0.359 inch
B 0.5 inch
h 1.938 inch
l1 1.25 inch
l2 2.438 inch
Max pivot angle 22°
Max static tensile strength (short term) 1500 N
Max static tensile strength (long term) 750 N
Max radial load (short term) 350 N
Max radial load (long term) 175 N
Min thread depth 0.875 inch
Max torque outside thread 3 Nm
Max torque through ball 15 Nm
Weight 8.8 g
