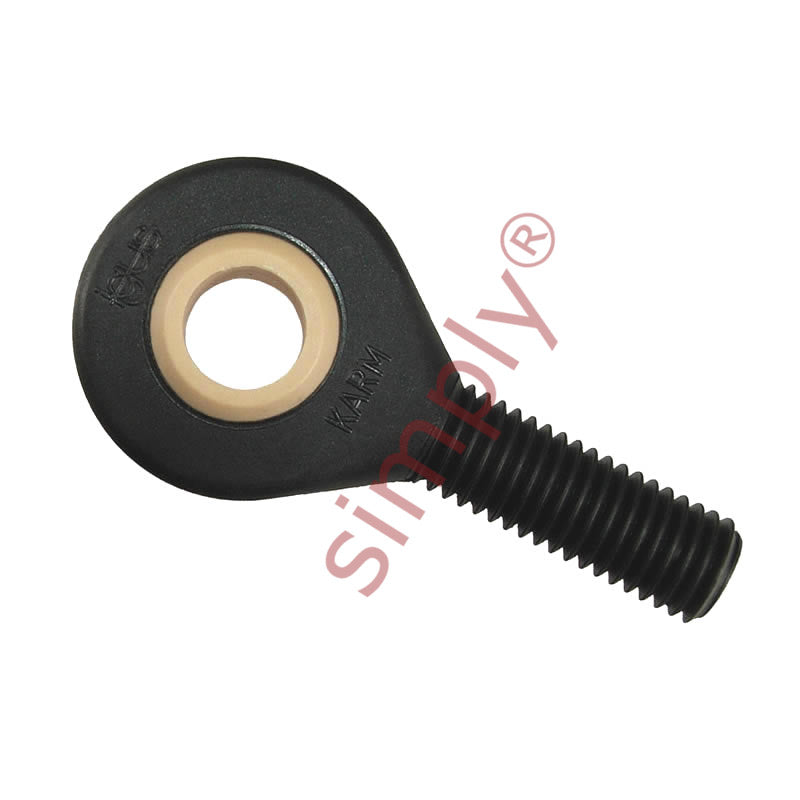

• igubal KARM05 Right Hand Male Plastic Rod End 5mm Bore M5 Thread
  • Igus
1 2

SKU: KARM-05

igubal KARM05 Right Hand Male Plastic Rod End 5mm Bore M5 Thread

igubal KARM05 Right Hand Male Plastic Rod End 5mm Bore M5 Thread
$16.00 ex VAT
$16.00 ex VAT
Sale Sold out

In stock

Price Break
4+ $10.72
9+ $10.11
19+ $9.99
29+ $9.87
39+ $9.75
49+ $9.63
59+ $9.03
69+ $8.91
79+ $8.79
89+ $8.67
99+ $8.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M5
C1 6mm
B 8mm
h 33mm
l1 19mm
l2 42mm
Max pivot angle 30°
Max static tensile strength (short term) 800 N
Max static tensile strength (long term) 400 N
Max radial load (short term) 80 N
Max radial load (long term) 40 N
Min thread depth 13mm
Max torque strength outside thread 0.4 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 2.7 g
