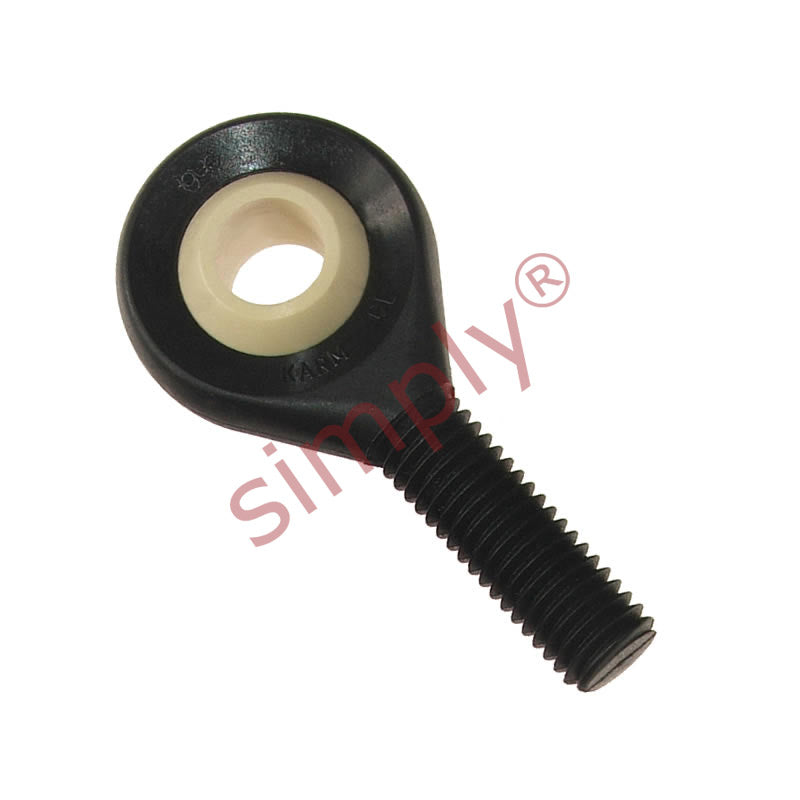

• igubal KARM06CL Right Hand Male Plastic Rod End 6mm Bore M6 Thread
  • Igus
1 2

SKU: KARM-06.CL

igubal KARM06CL Right Hand Male Plastic Rod End 6mm Bore M6 Thread

igubal KARM06CL Right Hand Male Plastic Rod End 6mm Bore M6 Thread
$16.14 ex VAT
$16.14 ex VAT
Sale Sold out

In stock

Price Break
4+ $10.81
9+ $10.20
19+ $10.08
29+ $9.96
39+ $9.84
49+ $9.72
59+ $9.11
69+ $8.99
79+ $8.87
89+ $8.75
99+ $8.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M6
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
6mm
Technical
d1 6mm
d2 20mm
d3 M6
C1 7mm
B 9mm
h 36mm
l1 21mm
l2 46mm
Max pivot angle 40°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 100 N
Max radial load (long term) 50 N
Min tread depth 15mm
Max torque strength outside thread 0.5 Nm
Max torque through ball (standard) 10 Nm
Max torque through ball (MH) 15 Nm
Weight 3.5 g
