SKU: KARM-06.CL.MH

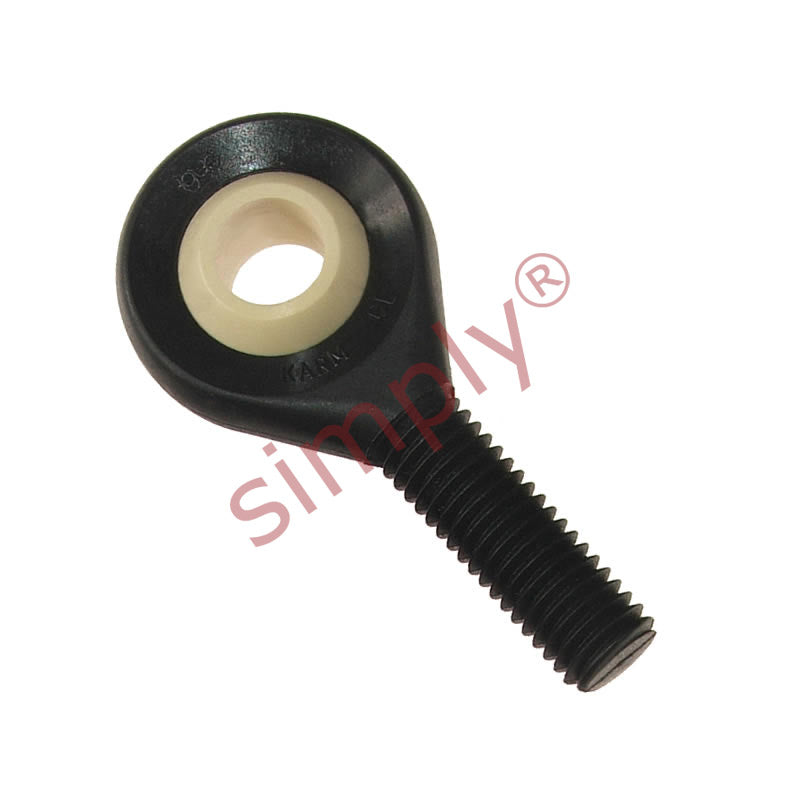

igubal KARM06CLMH Right Hand Male Plastic Rod End 6mm Bore M6 Thread
igubal KARM06CLMH Right Hand Male Plastic Rod End 6mm Bore M6 Thread
Regular price
$12.74
ex VAT
Regular price
Sale price
$12.74
ex VAT
In stock
Price Break
4+
$8.54
9+
$8.06
19+
$7.96
29+
$7.87
39+
$7.77
49+
$7.67
59+
$7.19
69+
$7.10
79+
$7.00
89+
$6.91
99+
$6.72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M6
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
Technical
Technical
| d1 | 6mm |
|---|---|
| d2 | 20mm |
| d3 | M6 |
| C1 | 7mm |
| B | 9mm |
| h | 36mm |
| l1 | 21mm |
| l2 | 46mm |
| Max pivot angle | 40° |
| Max static tensile strength (short term) | 1000 N |
| Max static tensile strength (long term) | 500 N |
| Max radial load (short term) | 100 N |
| Max radial load (long term) | 50 N |
| Min tread depth | 15mm |
| Max torque strength outside thread | 0.5 Nm |
| Max torque through ball (standard) | 10 Nm |
| Max torque through ball (MH) | 15 Nm |
| Weight | 3.5 g |
