SKU: KARM-08.CL.MH

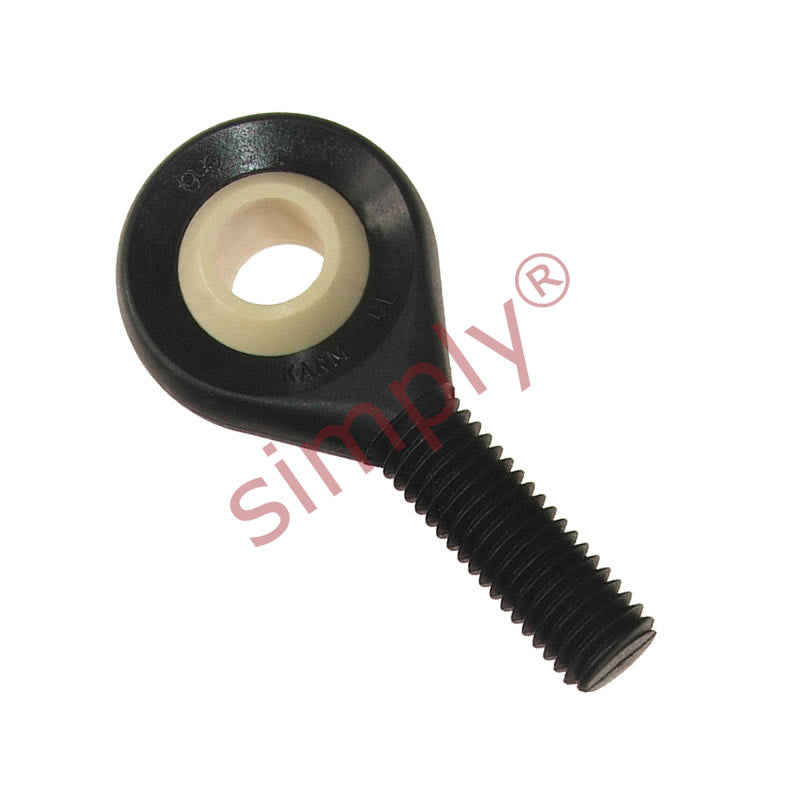

igubal KARM08CLMH Right Hand Male Plastic Rod End 8mm Bore M8 Thread
igubal KARM08CLMH Right Hand Male Plastic Rod End 8mm Bore M8 Thread
Regular price
$13.25
ex VAT
Regular price
Sale price
$13.25
ex VAT
In stock
Price Break
4+
$8.87
9+
$8.37
19+
$8.27
29+
$8.17
39+
$8.07
49+
$7.97
59+
$7.48
69+
$7.38
79+
$7.28
89+
$7.18
99+
$6.98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 24mm |
| d3 | M8 |
| C1 | 9mm |
| B | 12mm |
| h | 42mm |
| l1 | 25mm |
| l2 | 55mm |
| Max pivot angle | 35° |
| Max static tensile strength (short term) | 1700 N |
| Max static tensile strength (long term) | 850 N |
| Max radial load (short term) | 200 N |
| Max radial load (long term) | 100 N |
| Min tread depth | 18mm |
| Max torque strength outside thread | 2 Nm |
| Max torque through ball (standard) | 12 Nm |
| Max torque through ball (MH) | 40 Nm |
| Weight | 6.2 g |
