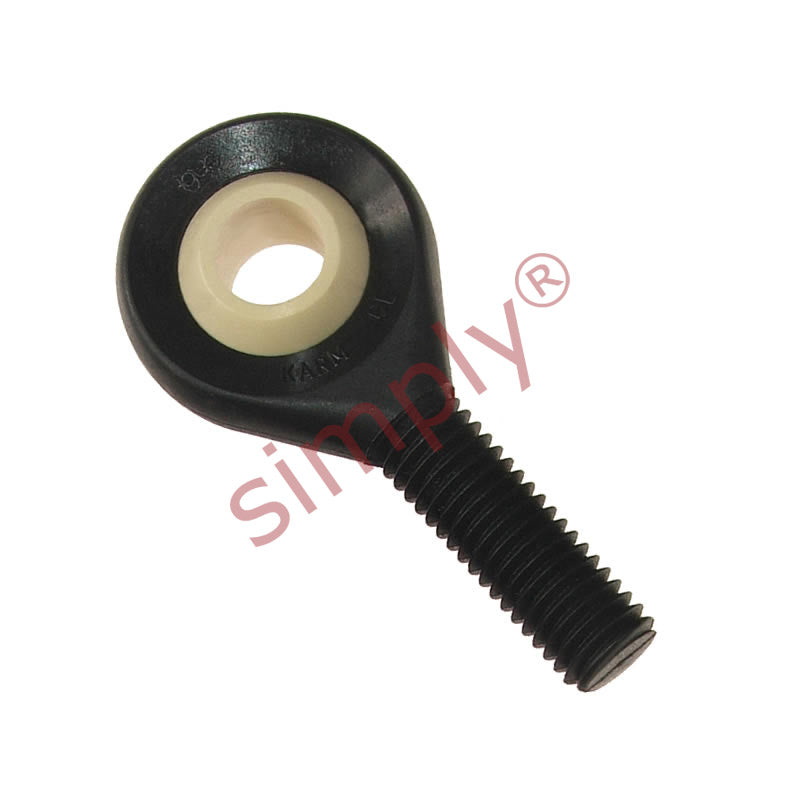

igubal KARM10CLR Right Hand Male Plastic Rod End 10mm Bore M10 Thread

IGUS igubal® KARM - CLR series right hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint, they are very smooth and have no dirt traps and have high dampening qualities. They have a very high resistance to corrosion and chemicals.
Materials: Ball material iglidur® R - Lower cost, Housing igumid G
Operating Temperature Range: Long term application temperature of 90 Deg C (up to 110 Deg C short term)
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Smooth design has no dirt traps, Compensation of misalignment, Light weight, Excellent corrosion resistance

Brand / Quality:

Igus - High Quality

Thread Size:

M10

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

10mm
