SKU: KARM-12.CL.MH

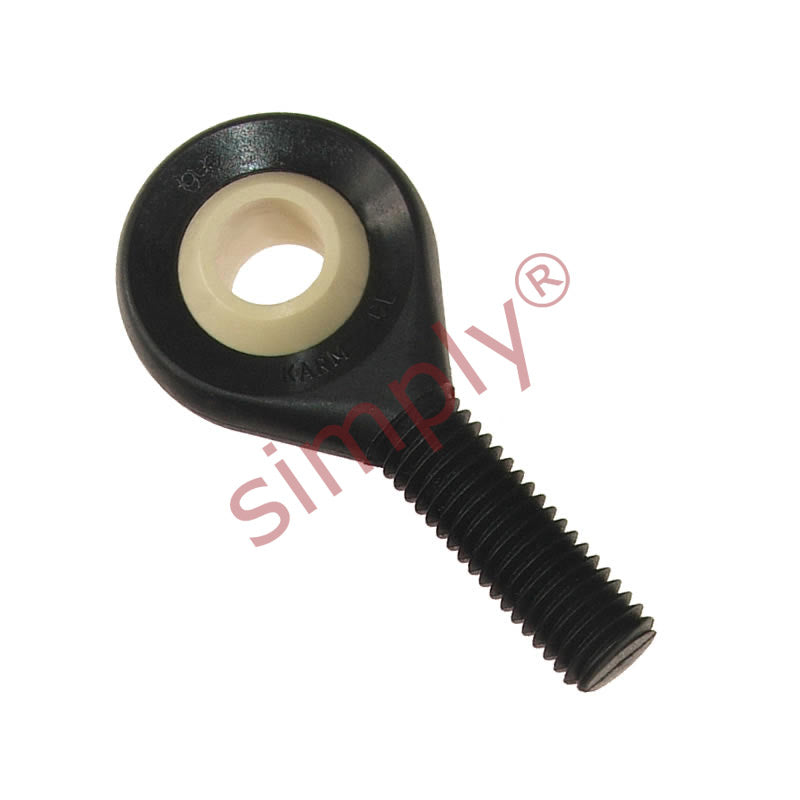

igubal KARM12CLMH Right Hand Male Plastic Rod End 12mm Bore M12 Thread
- Regular price
- $19.15 ex VAT
- Sale price
- $19.15
- Regular price
-
In stock
Quantity Price Breaks
4
$17.04
9
$16.09
19
$15.89
29
$15.70
39
$15.51
49
$15.32
59
$14.36
69
$14.17
79
$13.98
89
$13.79
99
$13.41
SKU:
KARM-12.CL.MH
igubal KARM12CLMH Right Hand Male Plastic Rod End 12mm Bore M12 Thread
- Regular price
- $19.15 ex VAT
- Sale price
- $19.15
- Regular price
-
Description
|
IGUS igubal® KARM - CL MH series right hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint, they are very smooth and have no dirt traps and have high dampening qualities. They have a very high resistance to corrosion and chemicals. A stainless steel sleeve is inserted through the spherical ball for enhanced torque and prevents over tightening of the bolt through the ball. Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C Materials: Ball material iglidur® W300, Housing igumid G Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Smooth design has no dirt traps, Compensation of misalignment, Light weight, Excellent corrosion resistance |
Technical
| d1 | = | 12mm |
| d2 | = | 34mm |
| d3 | = | M12 |
| C1 | = | 12mm |
| B | = | 16mm |
| h | = | 54mm |
| l1 | = | 32mm |
| l2 | = | 71mm |
| Max pivot angle | = | 35& |
| deg | = | |
| Max static tensile strength (short term) | = | 2700 N |
| Max static tensile strength (long term) | = | 1350 N |
| Max radial load (short term) | = | 400 N |
| Max radial load (long term) | = | 200 N |
| Min tread depth | = | 22mm |
| Max torque strength outside thread | = | 6 Nm |
| Max torque through ball (standard) | = | 30 Nm |
| Max torque through ball (MH) | = | 70 Nm |
| Weight | = | 15.6 g |
