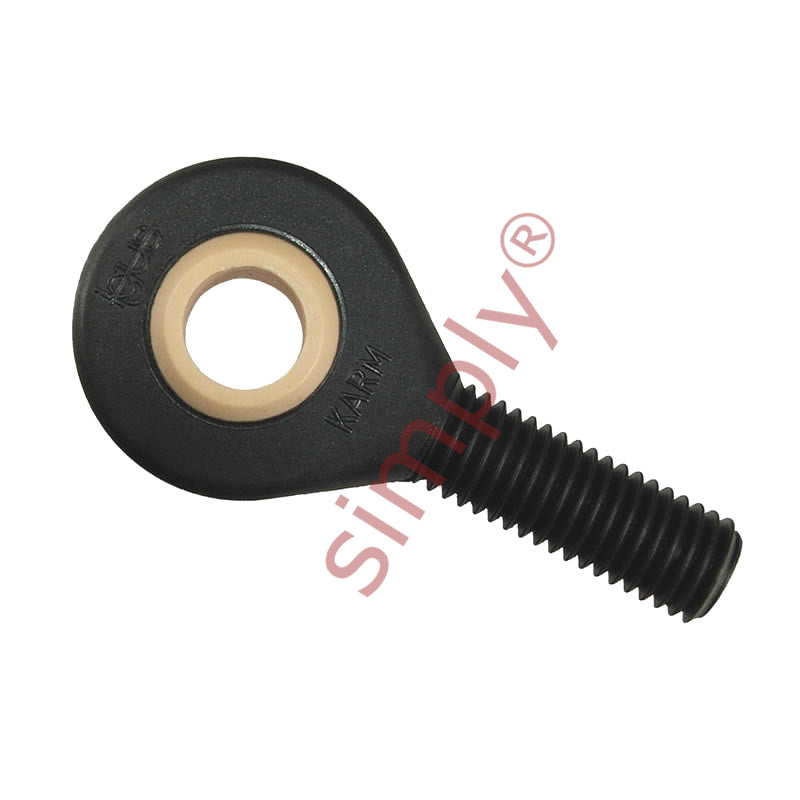

• igubal KARM25 Right Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
  • Igus
1 2

SKU: KARM-25

igubal KARM25 Right Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days

igubal KARM25 Right Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
$38.72 ex VAT
$38.72 ex VAT
Sale Sold out

In stock

Price Break
4+ $25.94
9+ $24.48
19+ $24.19
29+ $23.90
39+ $23.61
49+ $23.31
59+ $21.86
69+ $21.57
79+ $21.27
89+ $20.98
99+ $20.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS igubal® KARM series right hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Brand / Quality:
Igus - High Quality
Thread Size:
M24x2
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
25mm
Technical
d1 25mm
d2 61mm
d3 M24x2
C1 22mm
B 31mm
h 95mm
l1 55mm
l2 126mm
Max pivot angle 22°
Max static tensile strength (short term) 7500 N
Max static tensile strength (long term) 3750 N
Max radial load (short term) 1900 N
Max radial load (long term) 950 N
Min thread depth 39mm
Max torque strength outside thread 45 Nm
Max torque through ball (standard) 65 Nm
Weight 99.1 g
