SKU: KARM-30

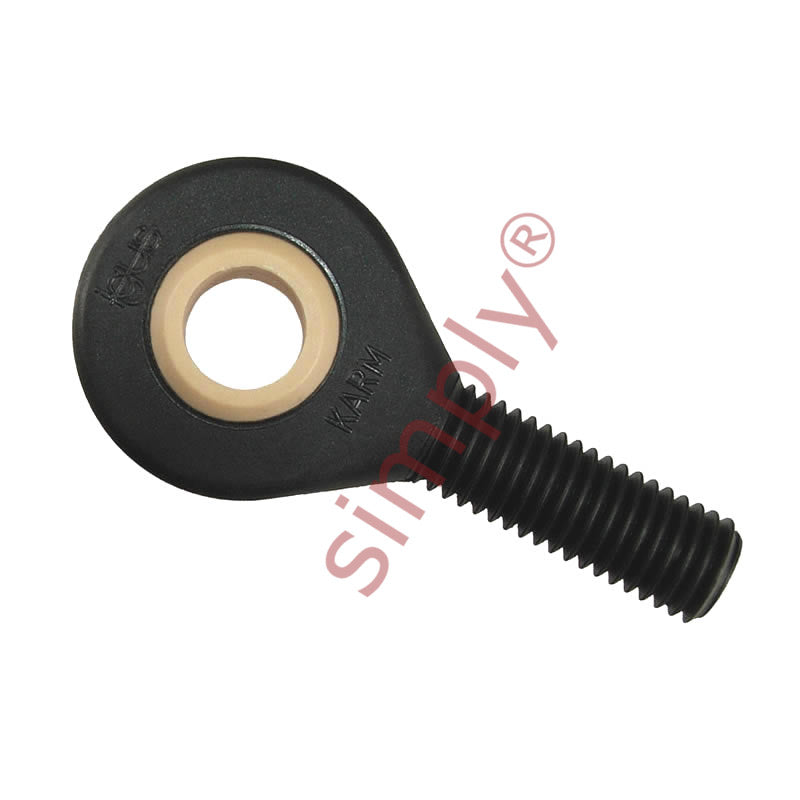

igubal KARM30 Right Hand Male Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
igubal KARM30 Right Hand Male Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
Regular price
$62.91
ex VAT
Regular price
Sale price
$62.91
ex VAT
In stock
Price Break
4+
$42.14
9+
$39.77
19+
$39.30
29+
$38.83
39+
$38.35
49+
$37.88
59+
$35.51
69+
$35.04
79+
$34.57
89+
$34.09
99+
$33.14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
Technical
Technical
| d1 | 30mm |
|---|---|
| d2 | 71mm |
| d3 | M30x2 |
| C1 | 25mm |
| B | 37mm |
| h | 112mm |
| l1 | 66mm |
| l2 | 147mm |
| Max pivot angle | 22° |
| Max static tensile strength (short term) | 8800 N |
| Max static tensile strength (long term) | 4400 N |
| Max radial load (short term) | 2300 N |
| Max radial load (long term) | 1150 N |
| Min thread depth | 46mm |
| Max torque strength outside thread | 85 Nm |
| Max torque through ball (standard) | 70 Nm |
| Weight | 160.4 g |
