• INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
  • INA
1 2

SKU: KB30-PP-INA

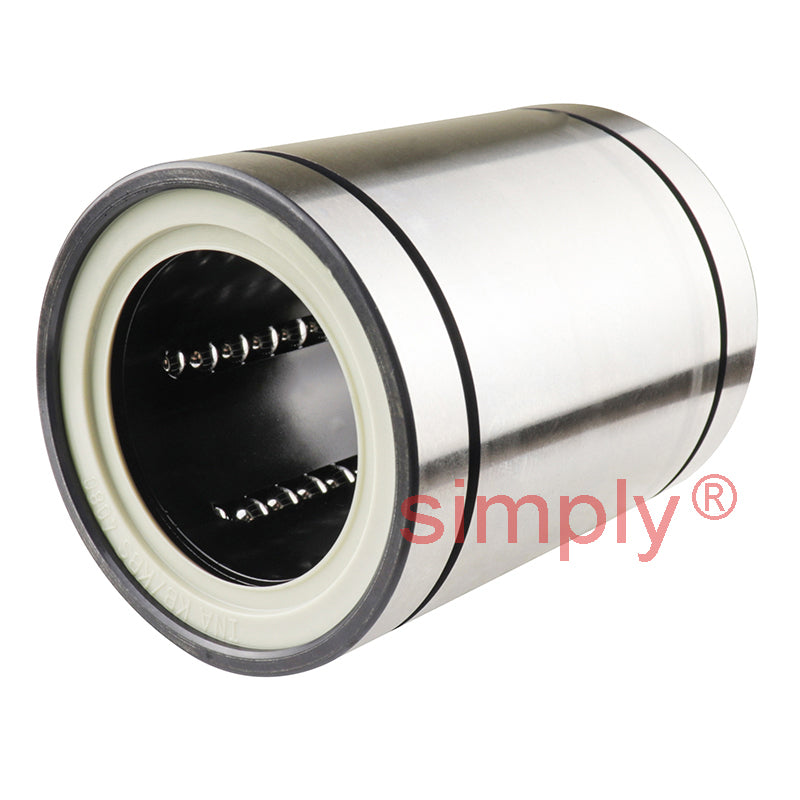

INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm

INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
$124.59 ex VAT
$124.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $83.46
5+ $78.77
10+ $77.83
15+ $76.89
20+ $75.95
30+ $75.02
40+ $70.33
50+ $69.39
60+ $68.45
75+ $67.51
100+ $65.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KB..-PP Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Width:
68mm
Technical
Fw 30mm
D 47mm
L 68mm
Numer of rows of balls 6
BL2 1.85mm
DN 44.5mm
L2 51.7mm
Mass 0.3 kg
Basic dynamic load rating C min 3600 N
Basic static load rating C0 min 2850 N
Basic dynamic load rating C max 3800 N
Basic static load rating C0 max 3600 N
