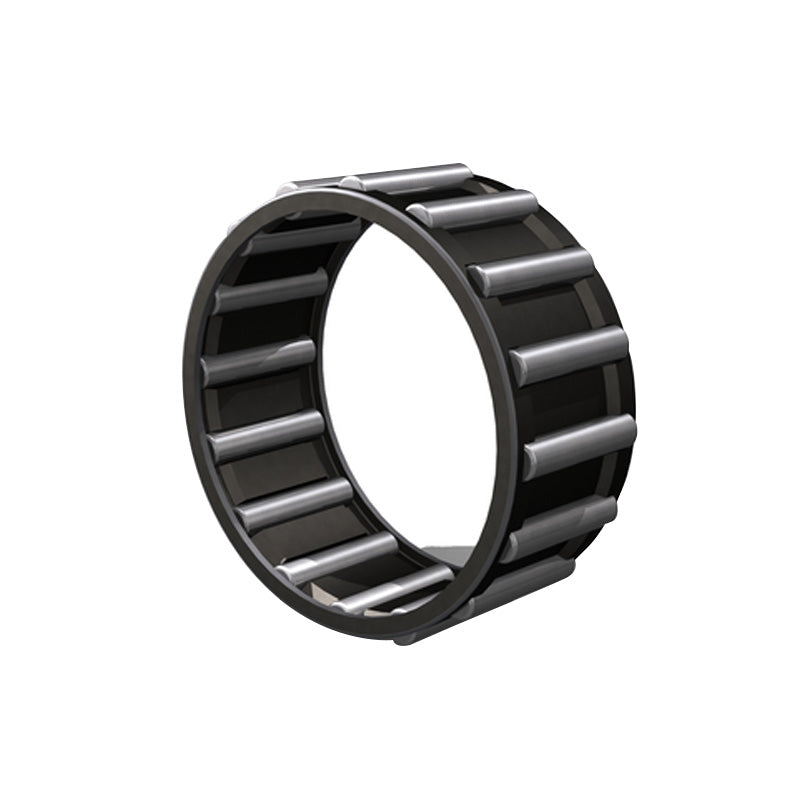

NTN KBK18X22X238X1 Needle Roller and Cage Assembly for Connecting Rod 18x22x23.8mm - Allow 2-3 Days
NTN KBK18X22X238X1 Needle Roller and Cage Assembly for Connecting Rod 18x22x23.8mm - Allow 2-3 Days
Regular price
$8.81
ex VAT
Regular price
Sale price
$8.81
ex VAT
In stock
Price Break
3+
$6.56
4+
$6.30
9+
$6.17
19+
$5.97
49+
$5.83
99+
$5.50
499+
$4.64
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 22mm
- Width:
- 23.8mm
Technical
Technical
| Fw - Inside diameter | 18mm |
|---|---|
| Ew - Outside diameter | 22mm |
| Bc - Cage width | 23.8mm |
| Cr - Dynamic load rating | 13 kN |
| C0r - Static load rating | 19.3 kN |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
