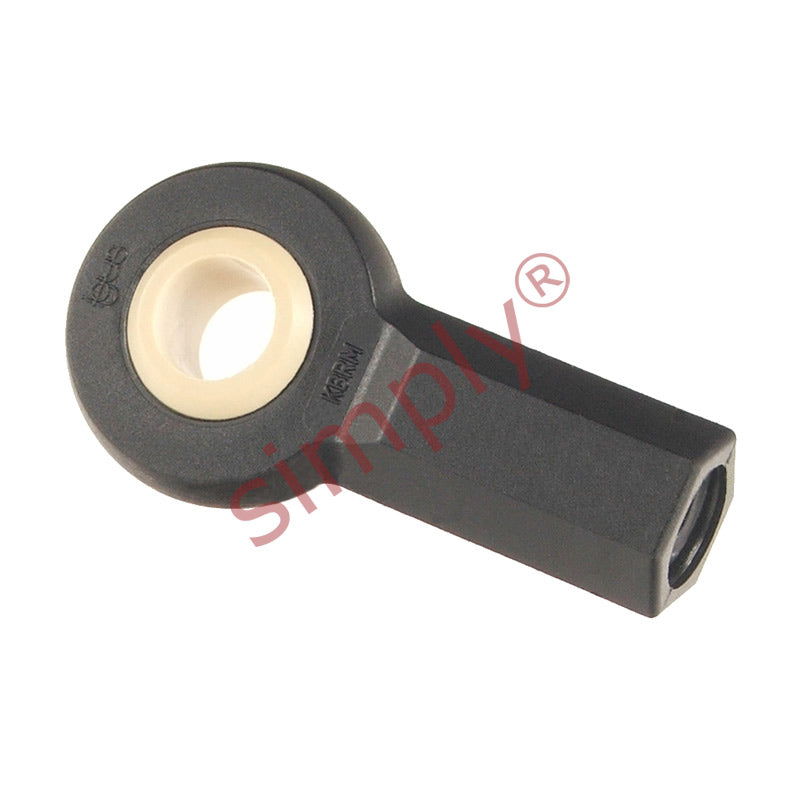

igubal KBLM14 Left Hand Female Plastic Rod End 14mm Bore M14 Thread
igubal KBLM14 Left Hand Female Plastic Rod End 14mm Bore M14 Thread
Regular price
$17.63
ex VAT
Regular price
Sale price
$17.63
ex VAT
In stock
Price Break
4+
$11.81
9+
$11.15
19+
$11.01
29+
$10.88
39+
$10.75
49+
$10.62
59+
$9.95
69+
$9.82
79+
$9.69
89+
$9.55
99+
$9.29
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
Technical
Technical
| d1 | 14mm |
|---|---|
| d2 | 38mm |
| d3 | M14 |
| d4 | 20mm |
| d5 | 25mm |
| C1 | 13.5mm |
| B | 19mm |
| h1 | 57mm |
| l3 | 25mm |
| l4 | 76mm |
| W | SW22 |
| Max pivot angle | 23° |
| Max static tensile strength (short term) | 4000 N |
| Max static tensile strength (long term) | 2000 N |
| Max radial load (short term) | 1000 N |
| Max radial load (long term) | 500 N |
| Min thread depth | 17mm |
| Max torque strength inside thread | 25 Nm |
| Max torque through ball (standard) | 35 Nm |
| Max torque through ball (MH) | 75 Nm |
| Weight | 30.9 g |
