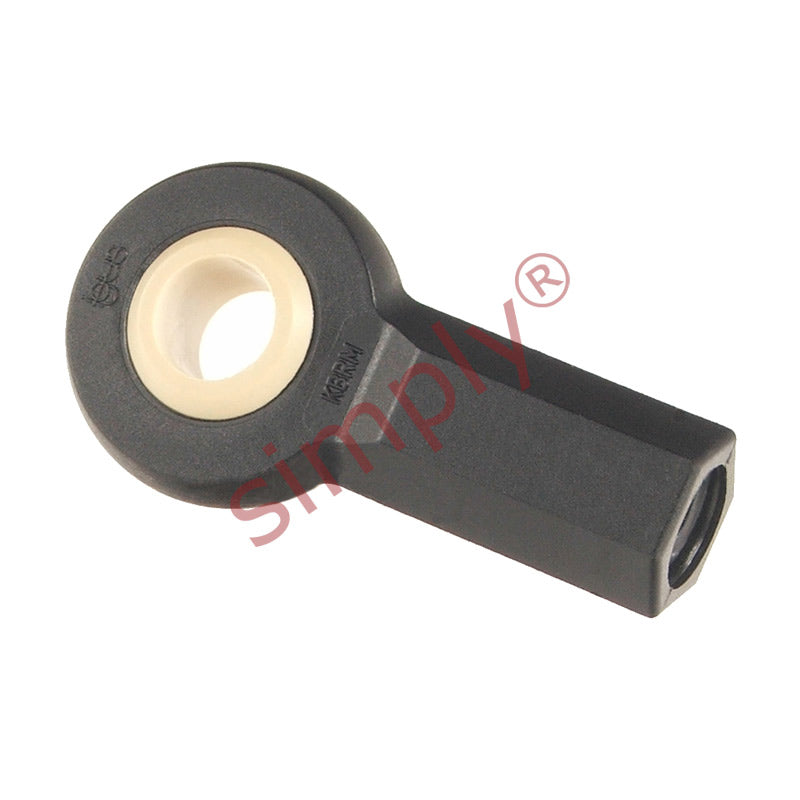

• igubal KBLM18 Left Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread
  • Igus
1 2

SKU: KBLM-18

igubal KBLM18 Left Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread

igubal KBLM18 Left Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread
$23.29 ex VAT
$23.29 ex VAT
Sale Sold out

In stock

Price Break
4+ $15.60
9+ $14.73
19+ $14.55
29+ $14.37
39+ $14.20
49+ $14.02
59+ $13.15
69+ $12.97
79+ $12.80
89+ $12.62
99+ $12.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS igubal® KBLM series left hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Brand / Quality:
Igus - High Quality
Thread Size:
M18x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
18mm
Technical
d1 18mm
d2 46mm
d3 M18x1.5
d4 25mm
d5 31mm
C1 16.5mm
B 23mm
h1 71mm
l3 32mm
l4 94mm
W SW27
Max pivot angle 23°
Max static tensile strength (short term) 4600 N
Max static tensile strength (long term) 2300 N
Max radial load (short term) 1600 N
Max radial load (long term) 800 N
Min thread depth 21mm
Max torque strength inside thread 45 Nm
Max torque through ball (standard) 45 Nm
Max torque through ball (MH) 150 Nm
Weight 55 g
