SKU: KBLM-20.M20.MH

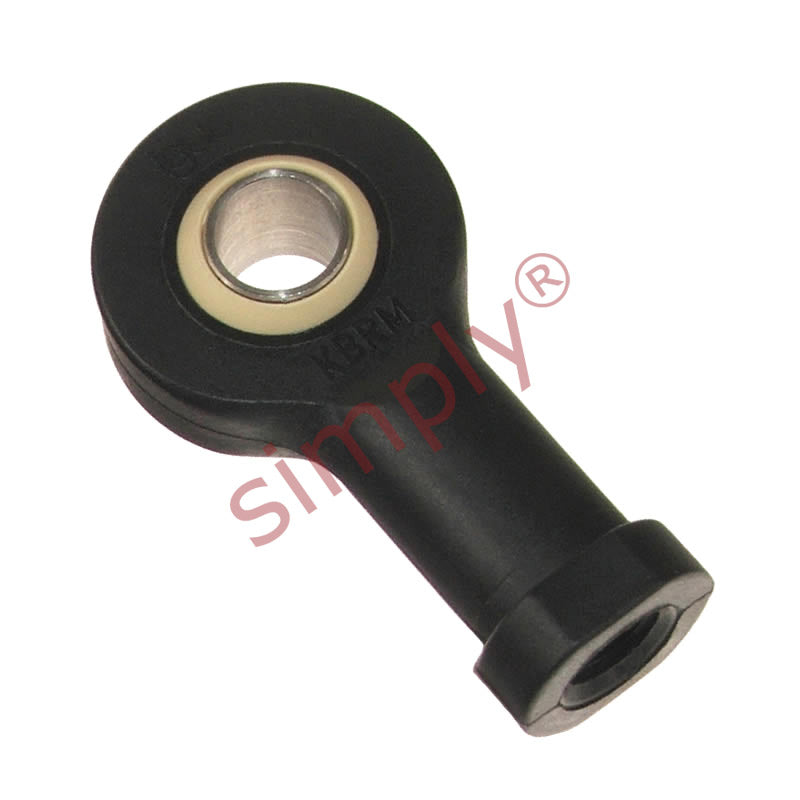

igubal KBLM20M20MH Left Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread with Metal Insert - Allow 2-3 Days
igubal KBLM20M20MH Left Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread with Metal Insert - Allow 2-3 Days
Regular price
$39.73
ex VAT
Regular price
Sale price
$39.73
ex VAT
In stock
Price Break
4+
$26.61
9+
$25.12
19+
$24.82
29+
$24.52
39+
$24.22
49+
$23.92
59+
$22.43
69+
$22.13
79+
$21.83
89+
$21.53
99+
$20.93
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M20x2.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
Technical
Technical
| d1 | 20mm |
|---|---|
| d2 | 50mm |
| d3 | M20x2.5 |
| d4 | 28mm |
| d5 | 34mm |
| C1 | 18mm |
| B | 25mm |
| h1 | 77mm |
| l3 | 33mm |
| l4 | 102mm |
| W | SW30 |
| Max pivot angle | 23° |
| Max static tensile strength (short term) | 5400 N |
| Max static tensile strength (long term) | 2700 N |
| Max radial load (short term) | 2100 N |
| Max radial load (long term) | 1050 N |
| Min thread depth | 22mm |
| Max torque strength inside thread | 60 Nm |
| Max torque through ball (standard) | 55 Nm |
| Max torque through ball (MH) | 200 Nm |
| Weight | 73.5 g |
